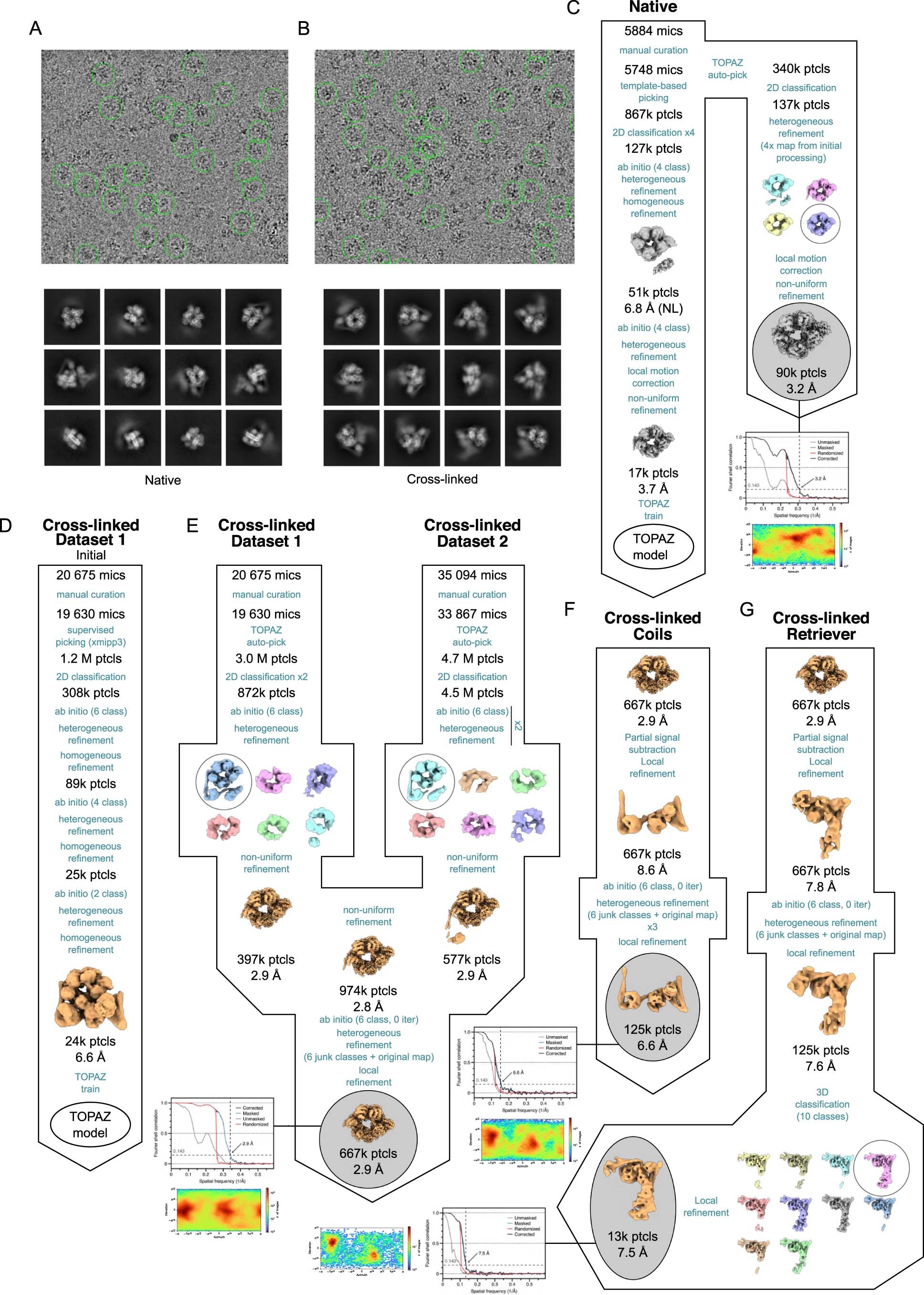

Extended Data Fig. 2: Cryo-EM of native and crosslinked Commander, related to Fig. 2.
From: Structure and interactions of the endogenous human Commander complex
a-b, Representative cryo-EM micrographs and selected 2D class averages of a native and b crosslinked Commander. Particle images have been low-pass filtered to 4 Å and show particles picked for the consensus map reconstruction. c-g, Cryo-EM data processing workflow for c, native Commander, d preliminary processing of crosslinked Commander dataset 1, e, final processing of crosslinked Commander datasets 1 and 2 consensus maps, f, focused map 1 of crosslinked Commander datasets (coiled coil region), and g, focused map 2 of crosslinked Commander datasets (Retriever subcomplex).
