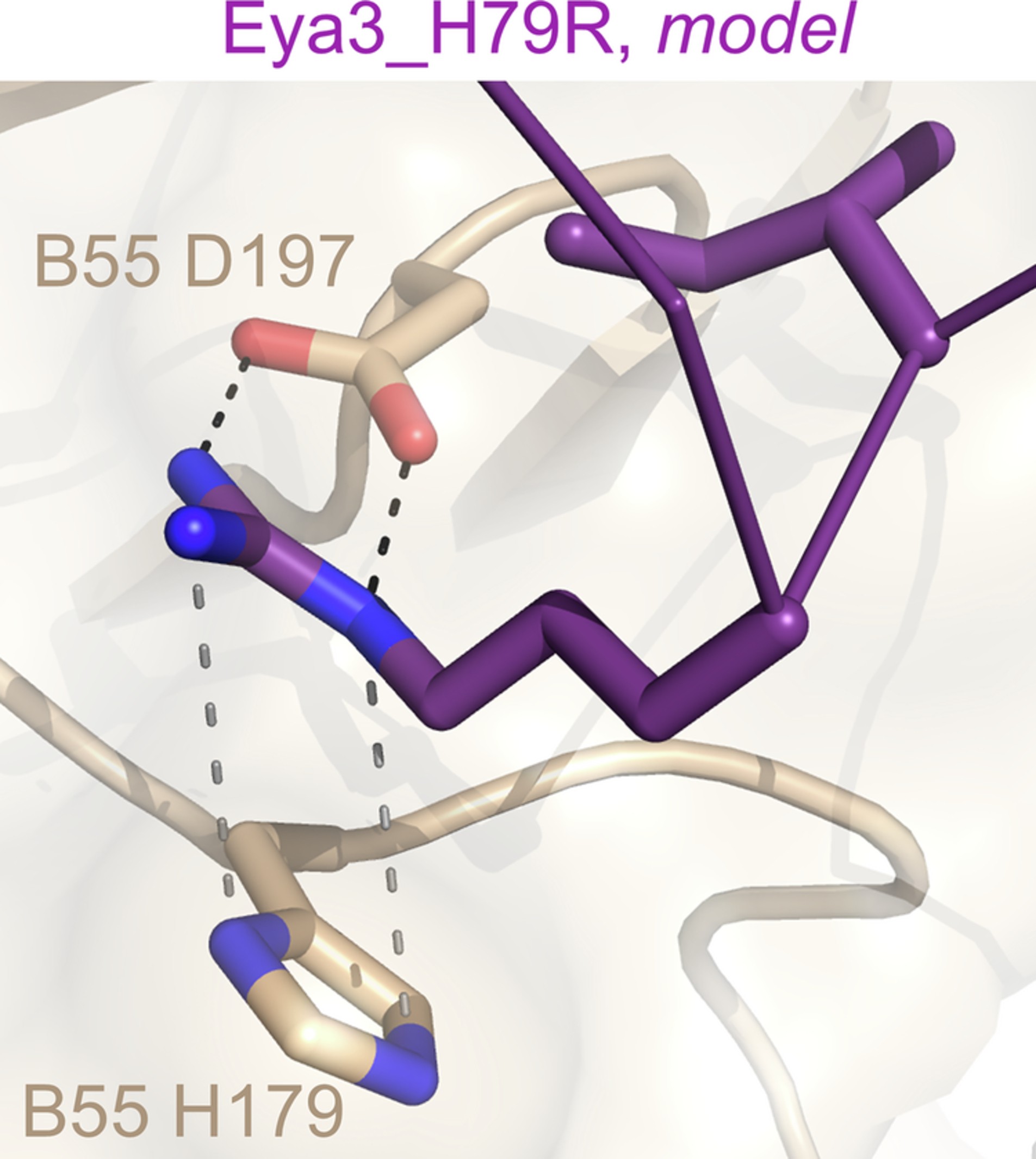

Extended Data Fig. 9: Eya3 H79R model.
From: Cryo-EM structures of PP2A:B55 with p107 and Eya3 define substrate recruitment
Model of Eya3-H79R (refined using phenix real space refine with the PP2A:B55-Eya3 WT map), illustrating that an arginine residue in this position can also, like Eya3 H79, π-stack and form a salt bridge with B55 residues H179 and D197, respectively.
