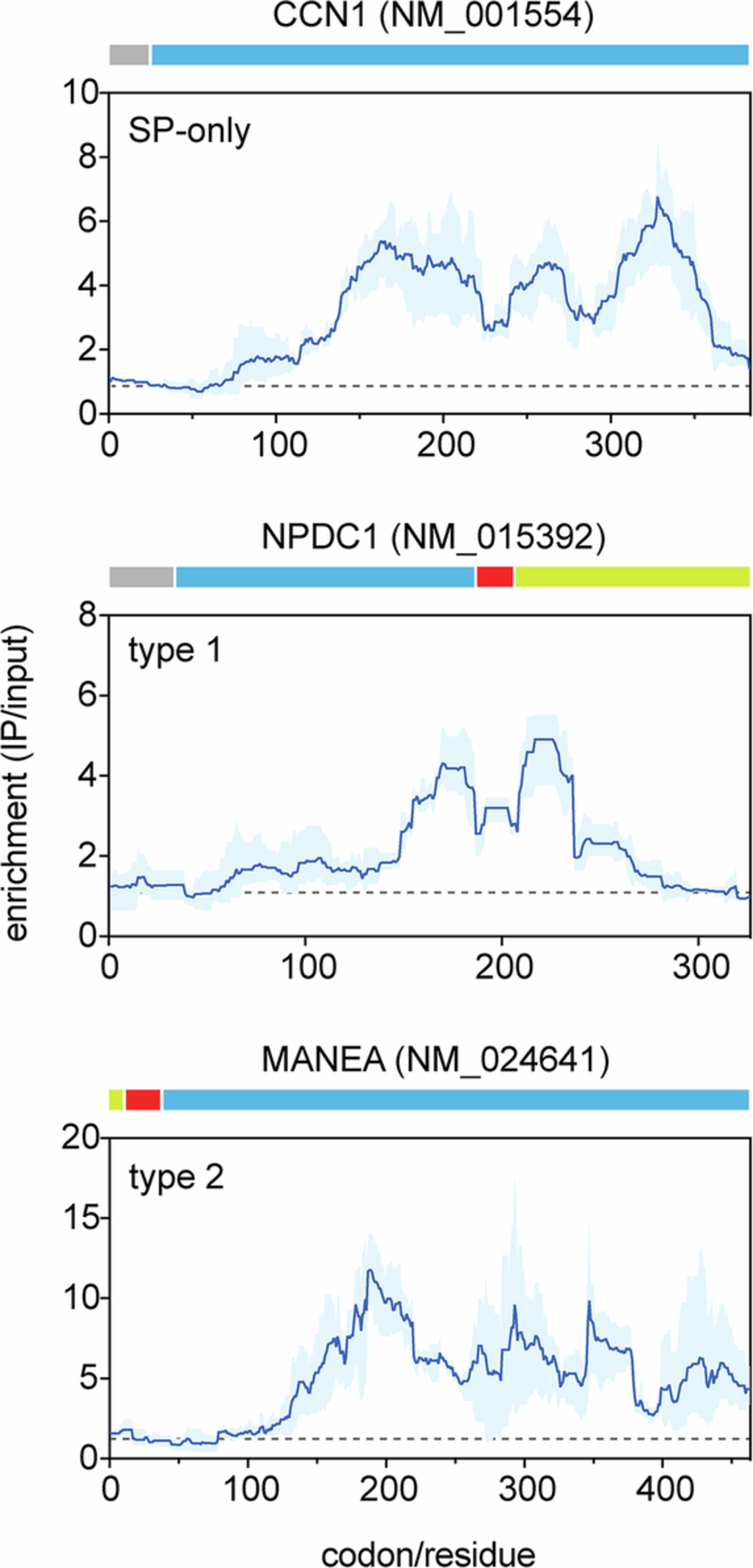

Extended Data Fig. 4: OST-A recruitment is independent of N-glycosylation acceptor sites.
From: Global analysis of translocon remodeling during protein synthesis at the ER
Median (dark blue line) and range (light blue shading) for n = 3 replicates are indicated. Diagrams of CCN1, NPDC1 and MANEA are shown above each plot. Signal peptides (grey), lumenal (blue) and cytosolic (yellow) segments, and transmembrane domains (red) are indicated. Note the robust OST-A recruitment despite the lack of any N-glycosylation acceptor sites in the substrate’s lumenal segments.
