Fig. 5

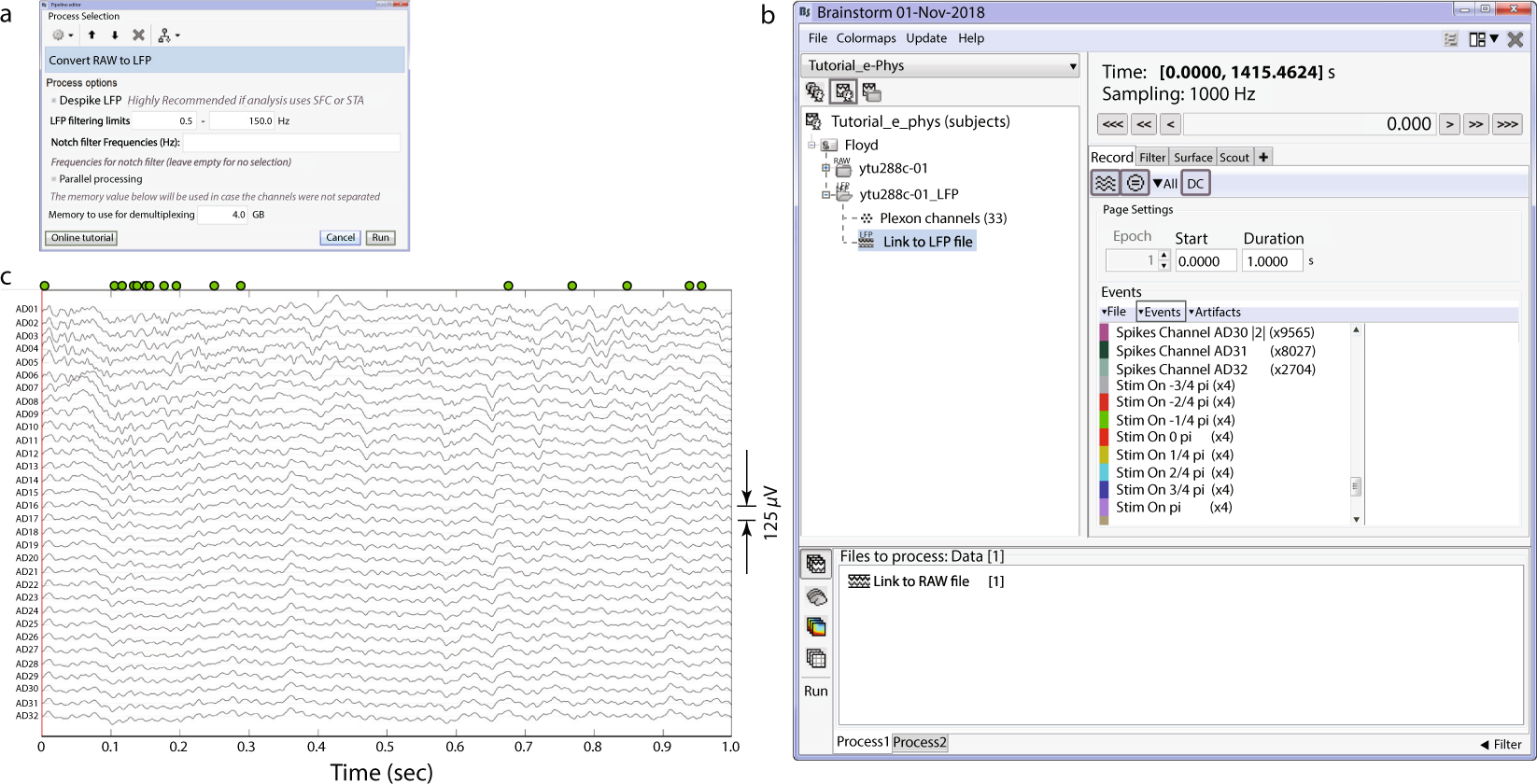

Converter from raw signals to LFPs. (a) Users can select the filtering limits of their LFP and apply a notch filter if necessary. The converter downsamples the raw signal to 1 KHz. (b) Once the conversion is complete, a single binary file (.bst) that contains all the necessary information (LFPs, experimental and spiking events, electrode positions etc.) is stored on the hard drive, and automatically imported on the data-tree as a new dataset. (c) 1 second segment review of the created LFP signal traces. The spiking events from the first neuron of electrode AD01 are represented by the green dots on the top of the figure, as in Fig. 2.
