Fig. 11
From: A simulated Northern Hemisphere terrestrial climate dataset for the past 60,000 years

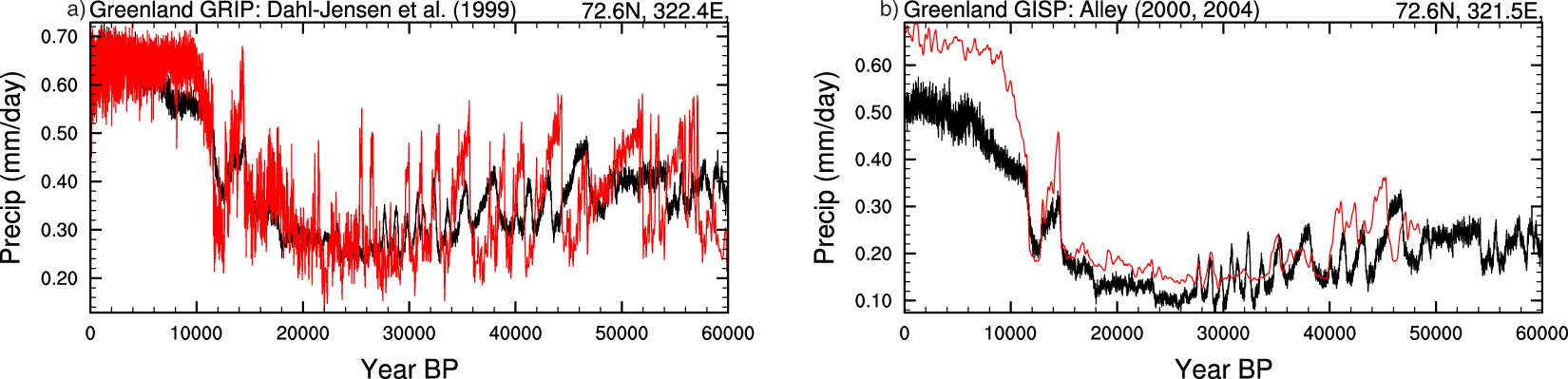

Validation plots for precipitation (mm/day). The bias corrected precipitation (black) is shown against two observational datasets from Greenland (red). Both of these datasets represent snow accumulation, which is used as an equivalent to precipitation in the absence of total precipitation datasets. (a) Shows the GRIP ice-core and (b) the GISP Ice-core. The associated reference and lat/lon position for each dataset is given above each panel. Mismatches in the timing of abrupt events are due to updates to the Greenland ice-core chronologies since the publication of these two records.
