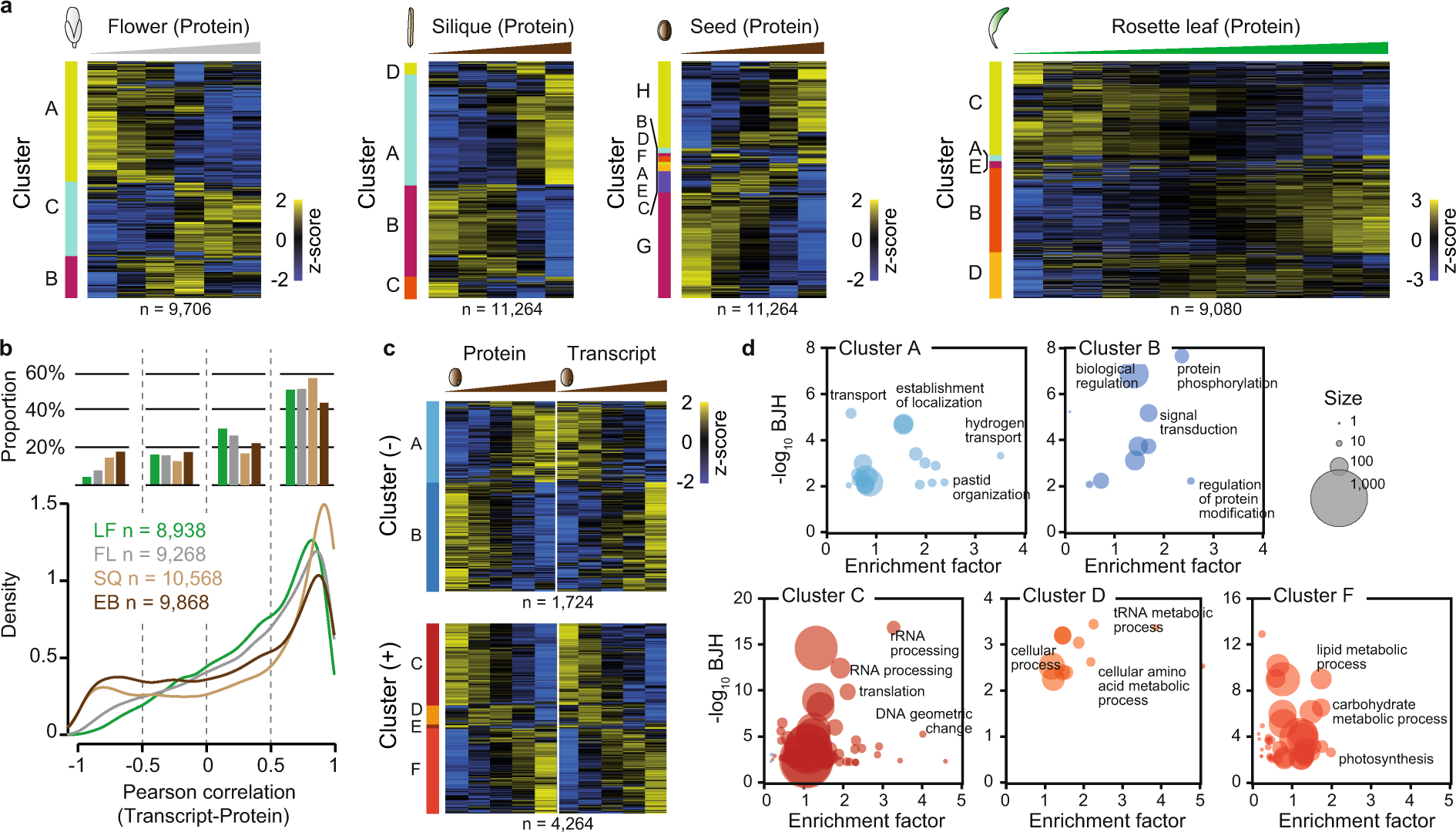

Fig. 4
From: Proteomic and transcriptomic profiling of aerial organ development in Arabidopsis
GO enrichment and protein-transcript correlation. (a) Supervised hierarchical clustering of z-scored gene expression profiles at protein level for leaf, flower, silique and seed datasets. (b) Density profiles of Pearson correlation coefficients between transcript and protein abundance for individual genes (lower panel). Bar chart displaying the respective proportion of genes with positive (0.5 to 1), negative (−1 to −0.5) or no correlation (−0.5 to 0 and 0 to 0.5) (upper panel). Rosette leaf (LF), flower (FL), silique (SQ) and seed (EB). (c) Supervised hierarchical clustering of z-scored gene expression profiles at protein and transcript level for genes with positive (+; 0.5 to 1) or negative (-; -1 to −0.5) protein-transcript correlation. (d) Fisher’s exact test GO term enrichment for clusters from (c). Benjamini-Hochberg (BJH) threshold 0.01.
