Fig. 4
From: CREAM, a component level coffeemaker electrical activity measurement dataset

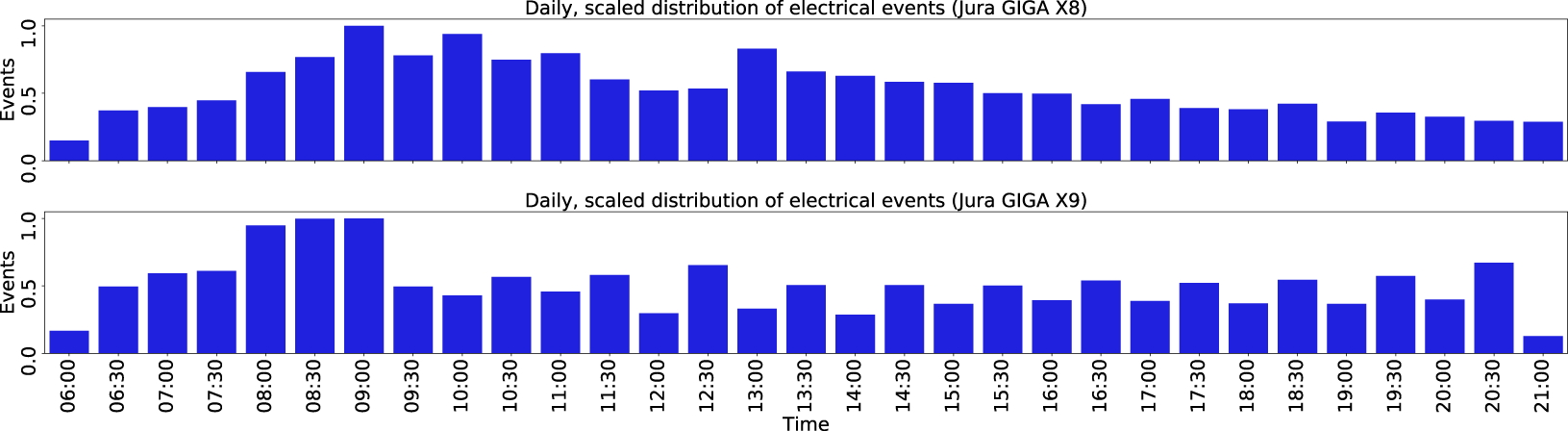

Daily distribution of electrical events. The upper figure shows the scaled event distribution of the Jura GIGA X8, whereas the bottom one visualises the event distribution of the Jura GIGA X9. Accumulated over all days in the dataset, the distribution of events is balanced with peaks in the morning and after lunch, as expected in the office environment.
