Fig. 5

From: CREAM, a component level coffeemaker electrical activity measurement dataset

Fig. 5

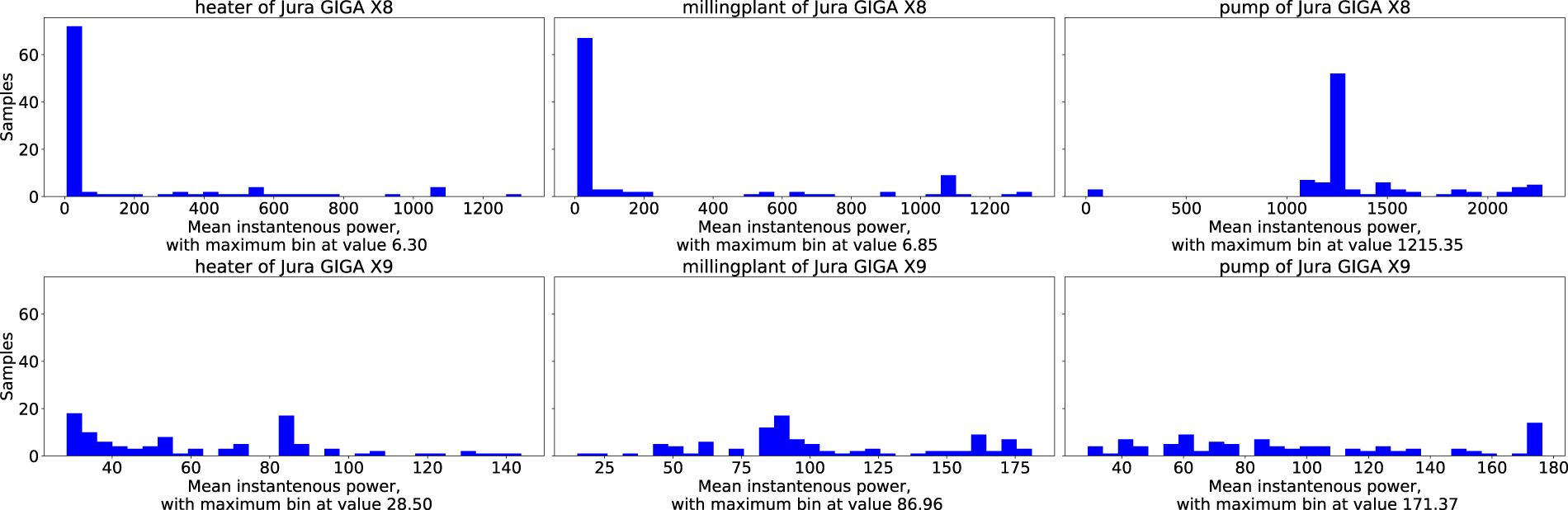

Mean instantaneous power consumed by each main component. We computed the power for a subset of 100 samples per component to address the class imbalance. The first row of the figure contains the components of the Jura GIGA X8 and the second one the ones of the Jura GIGA X9. For the Jura GIGA X8, each component has a clear peak power corresponding to the consumption of the majority of events, whereas the Jura GIGA X9 exhibits more uniform characteristics.
