Fig. 4
From: Multimodal pathophysiological dataset of gradual cerebral ischemia in a cohort of juvenile pigs

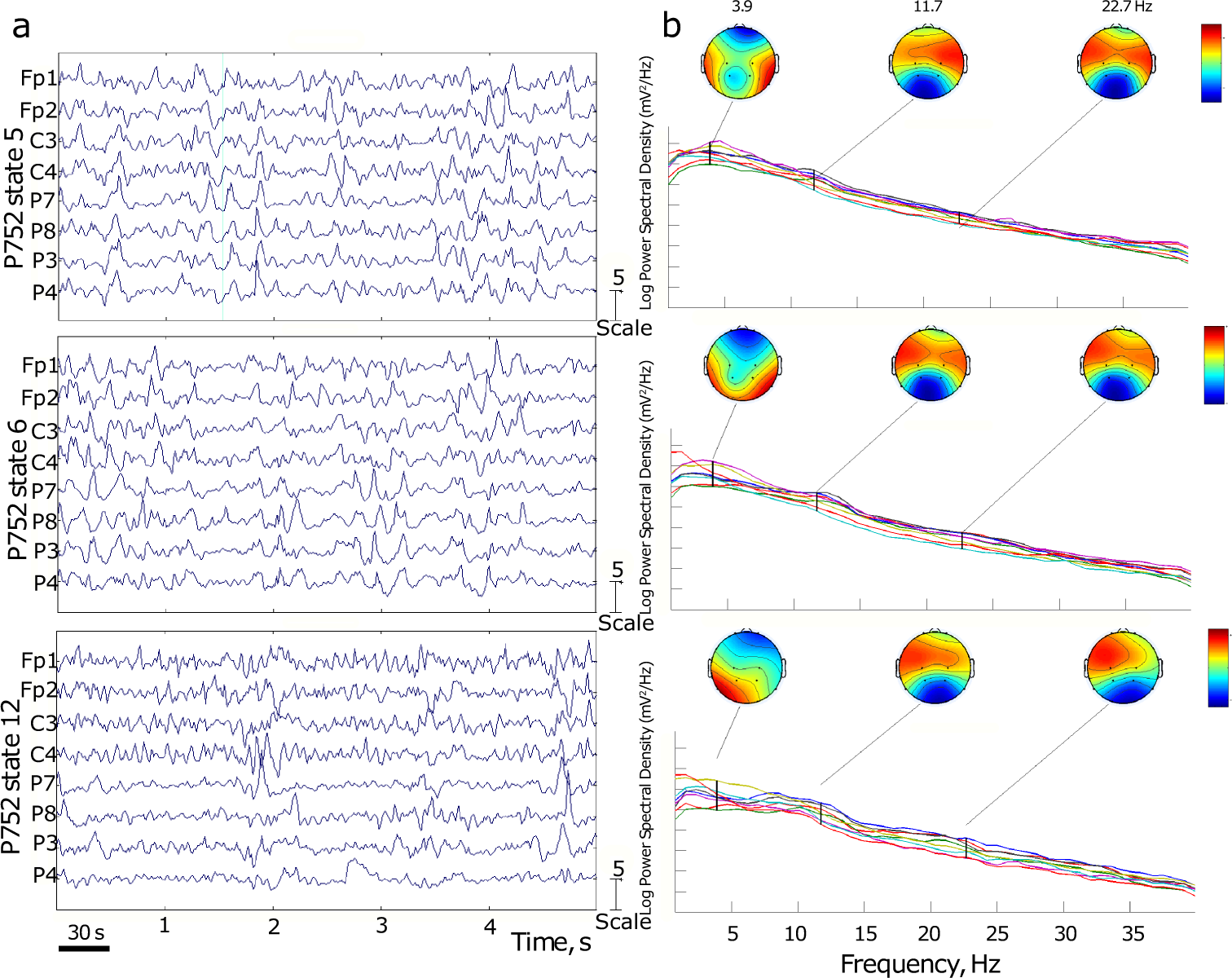

Representative findings for sedation (state 5, moderate propofol sedation), ischemia (state 6, ischemia) and recovery (state 12, 60 min recovery)*. For each state, we show the raw ECoG tracings (Fig. 4a, normalized and DC removed), corresponding topological power spectrum maps (Fig. 4b) showing gradual suppression of activity with peaks at 4, 12, and 23 Hz. *Note that all axes are set identically for easy comparison except the topological and time-frequency transform heat maps. These are individually optimized in range for best viewing experience.
