Fig. 5
From: Multimodal pathophysiological dataset of gradual cerebral ischemia in a cohort of juvenile pigs

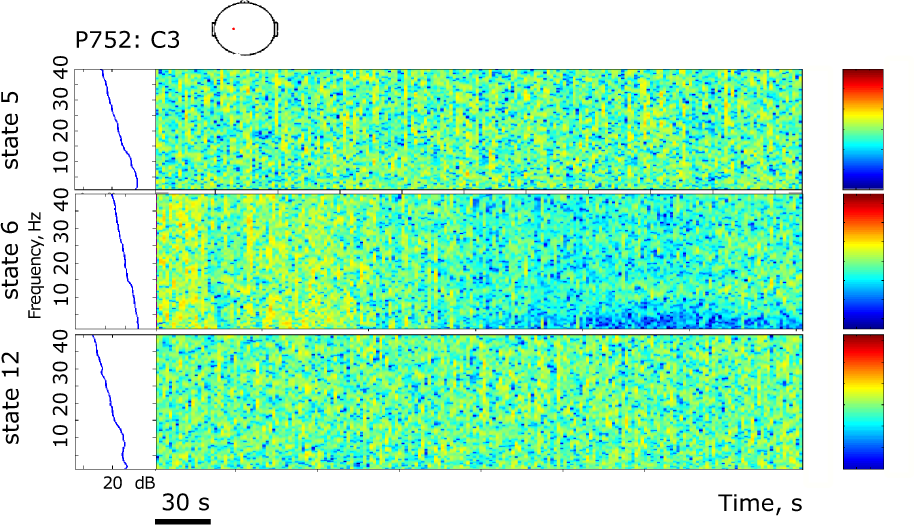

Representative findings for sedation (state 5, moderate propofol sedation), ischemia (state 6, ischemia) and recovery (state 12, 60 min recovery)*. For each state, we show the time-frequency representation using wavelet transform on the channel 5 (i.e., C3). *Note that all axes are set identically for easy comparison except the topological and time-frequency transform heat maps. These are individually optimized in range for best viewing experience.
