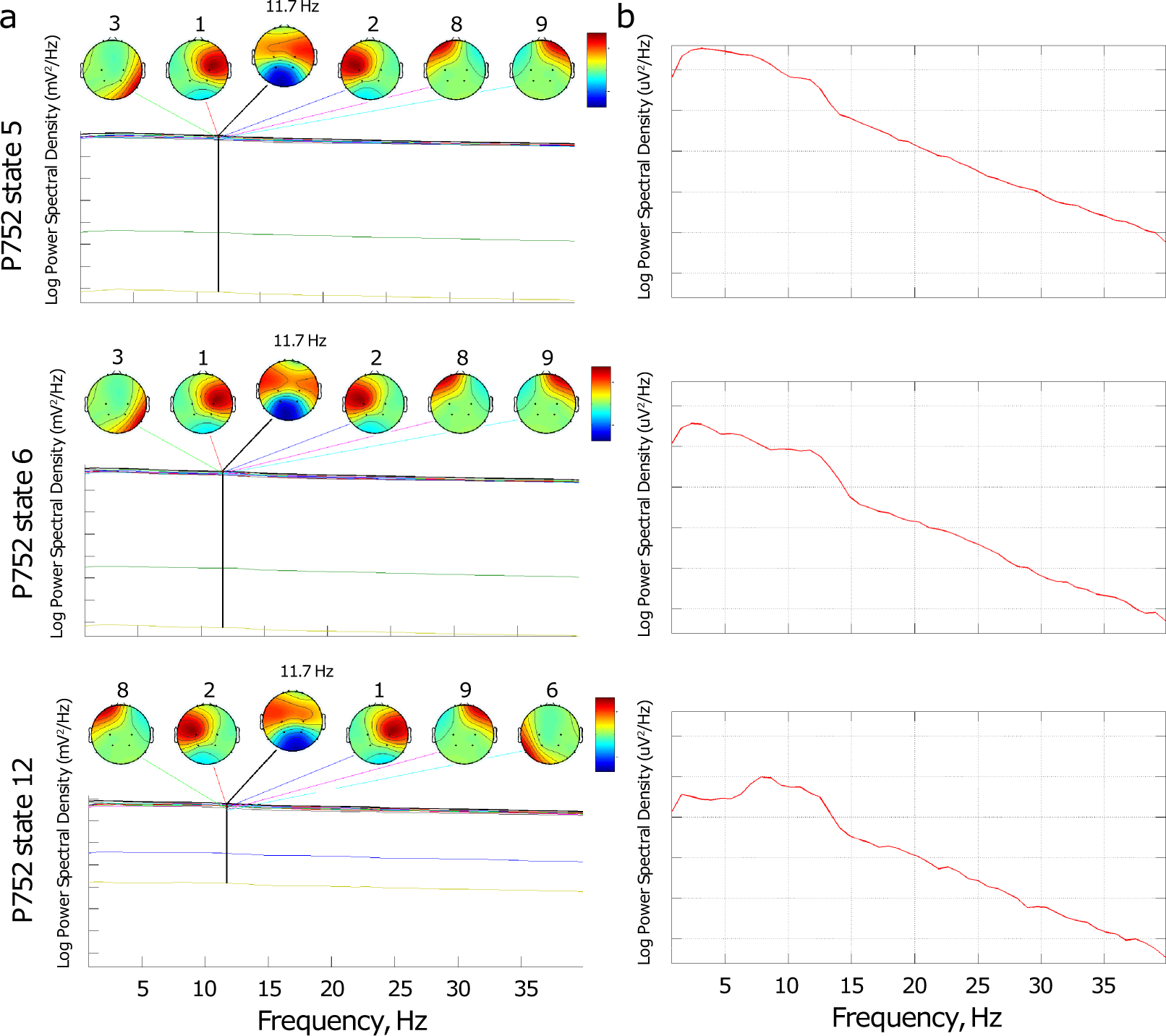

Representative findings for sedation (state 5, moderate propofol sedation), ischemia (state 6, ischemia) and recovery (state 12, 60 min recovery)*. For each state, we show in Fig. 6a the independent component (IC) analyses with focus on 12 Hz activity (one of the clearest consistent peaks in the entire group) for the five top ICs in each state and the representative IC2 power spectrum (Fig. 6b), again showing the overall reduction of activity. *Note that all axes are set identically for easy comparison except the topological and time-frequency transform heat maps. These are individually optimized in range for best viewing experience.
