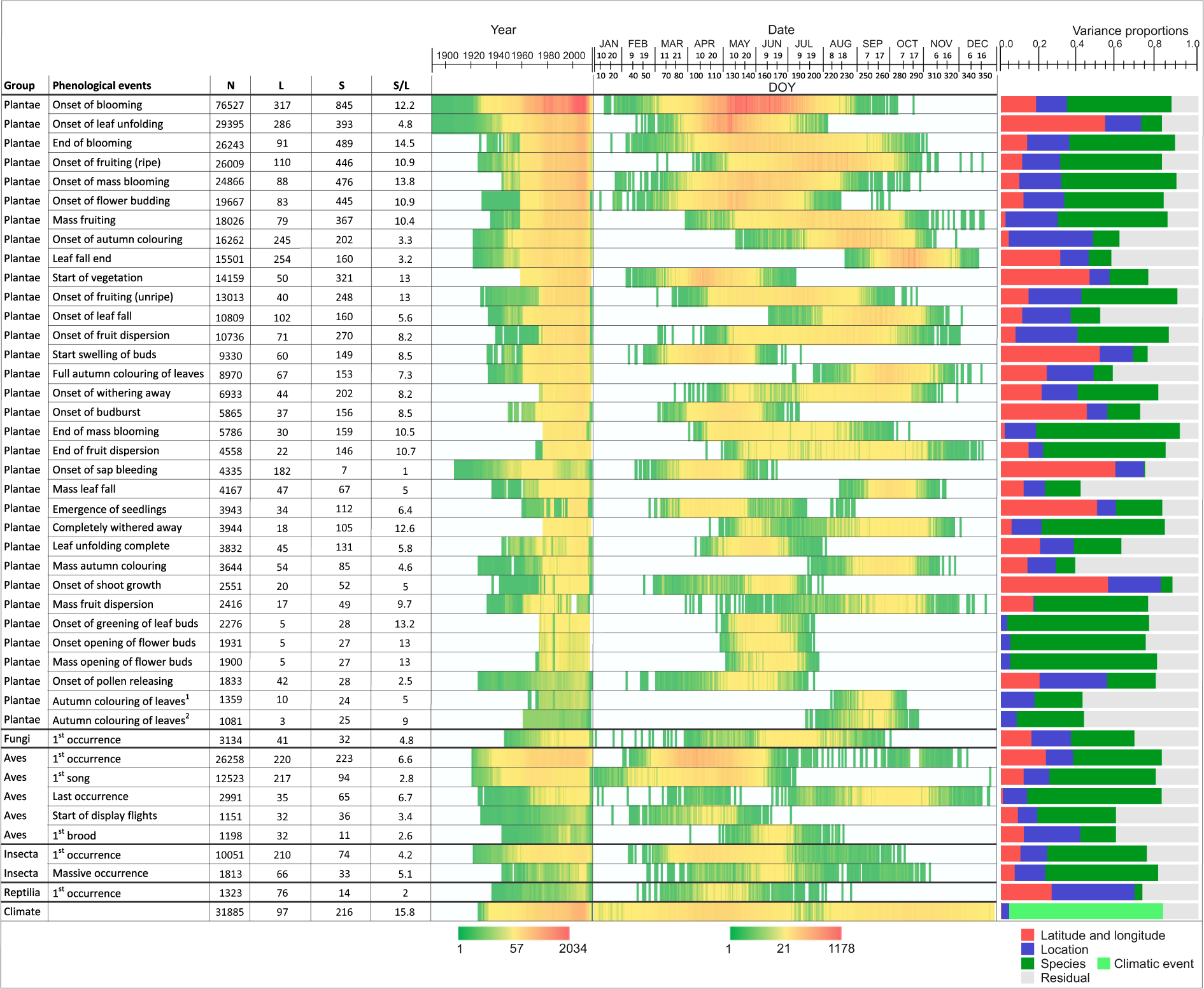

Fig. 2
From: Chronicles of nature calendar, a long-term and large-scale multitaxon database on phenology
Illustration of the structure of the data for phenological events with highest coverage. Each row corresponds to a type of phenological event. For each event, shown are the total number of records (N), the number of locations from which the records originate (L), the number of species that the data involve (S), and the mean number of species per location (S/L). The two heat maps show the temporal coverage of data in terms of years included (reflecting data availability), and in terms of the phenological dates (reflecting the timing of the included events). Further shown is a variance partitioning, with the colours corresponding to the fixed effects of latitude, longitude and their interaction (red), the random effect of the site (blue), the random effect of the taxon or climatic parameter (green), and the residual (grey). The event types are ordered within each taxonomic group according to the total amount of data.
