Fig. 3
From: A voltage and current measurement dataset for plug load appliance identification in households

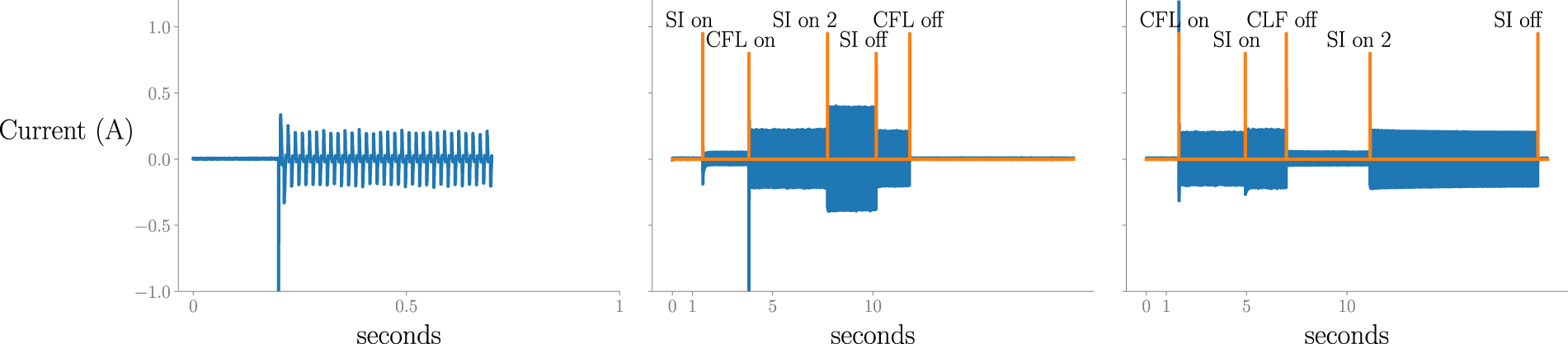

An example of the aggregated data, where appliances are (de)activated during the first step of a soldering iron (SI)’s activation. (a) The transient of the current consumption of the CFL is shown (submetered/1745.csv). (b) The CFL is activated during the first phase of activation of the soldering iron (SI) (aggregated/558.csv). (c) The CFL is deactivated during the first phase of activation of the soldering iron (SI) (aggregated/559.csv).
