Fig. 6

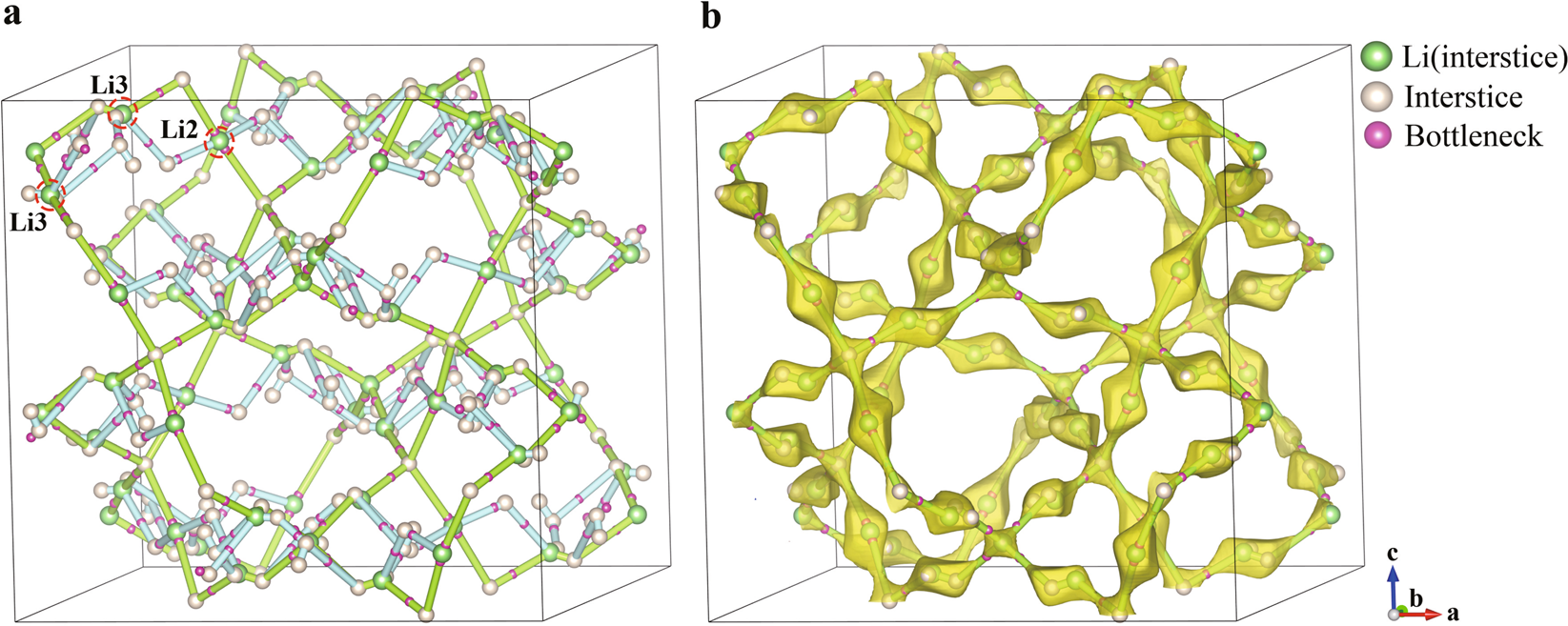

(a) Three-dimensional migration paths of tetragonal LLZO generated using CAVD are shown in green and blue cylinders, where the threshold parameter related to the Li+ radius is 0.563 Å. (b) Comparison of migration paths of tetragonal LLZO calculated using CAVD and BVSE. The 3D migration paths of BVSE are shown in yellow isosurfaces with migration energy barrier Ea of 0.576 eV.
