From: CAVD, towards better characterization of void space for ionic transport analysis

Fig. 8The alternative text for this image may have been generated using AI.

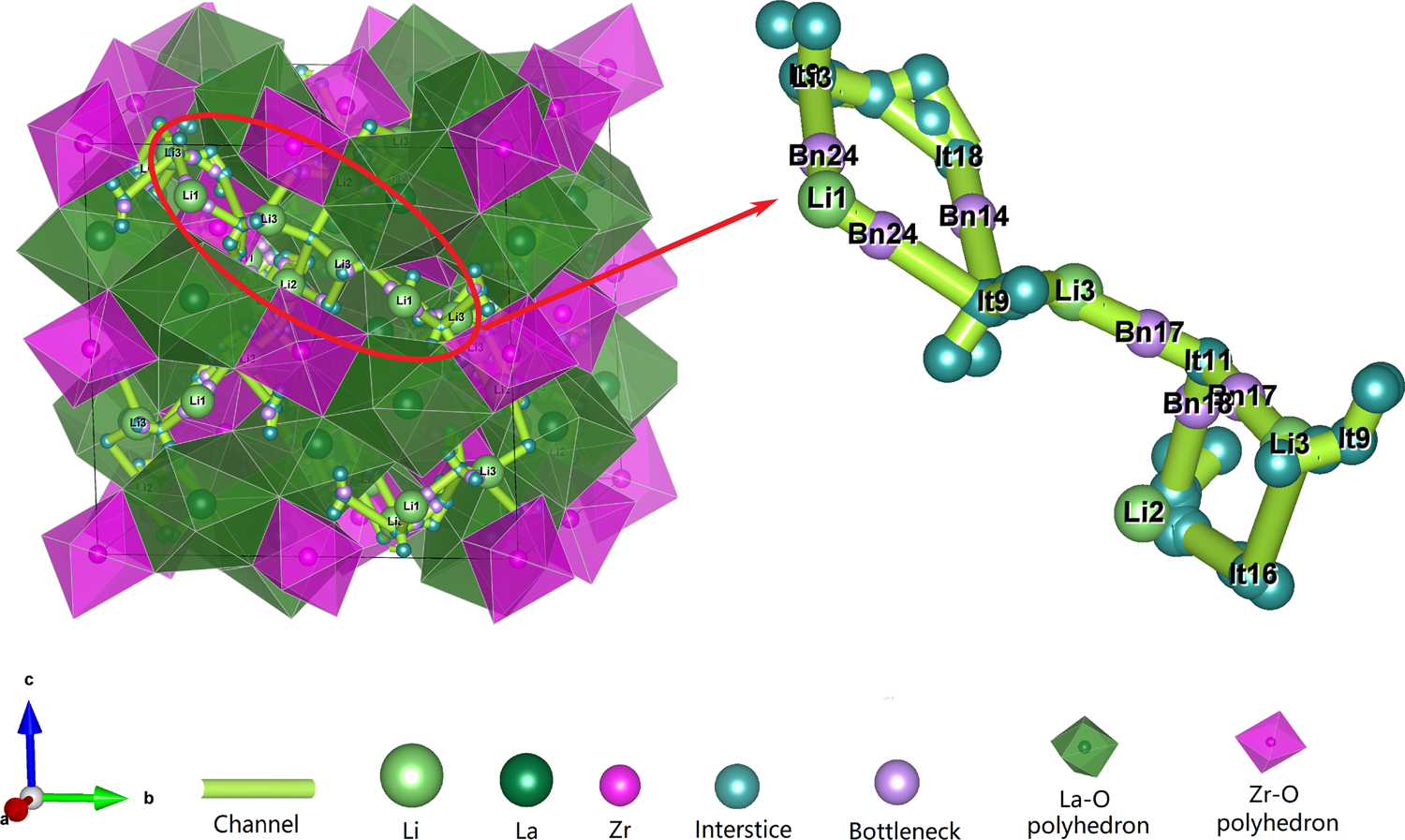

The 3D Li+ transport channel in Li7La3Zr2O12 (icsd_246817). All of the reported migration paths between Li1, Li2 and Li3 are included in the calculated channel (see VestaFiles/icsd_246817.vesta in figshare). There are five interstitial clusters are formed by It10-It12-It17, It7-It18, It6-It16, It9-It15 and It1-It2, some of them are omitted in the figure for clarity.
