From: Discharge profile of a zinc-air flow battery at various electrolyte flow rates and discharge currents

Fig. 3

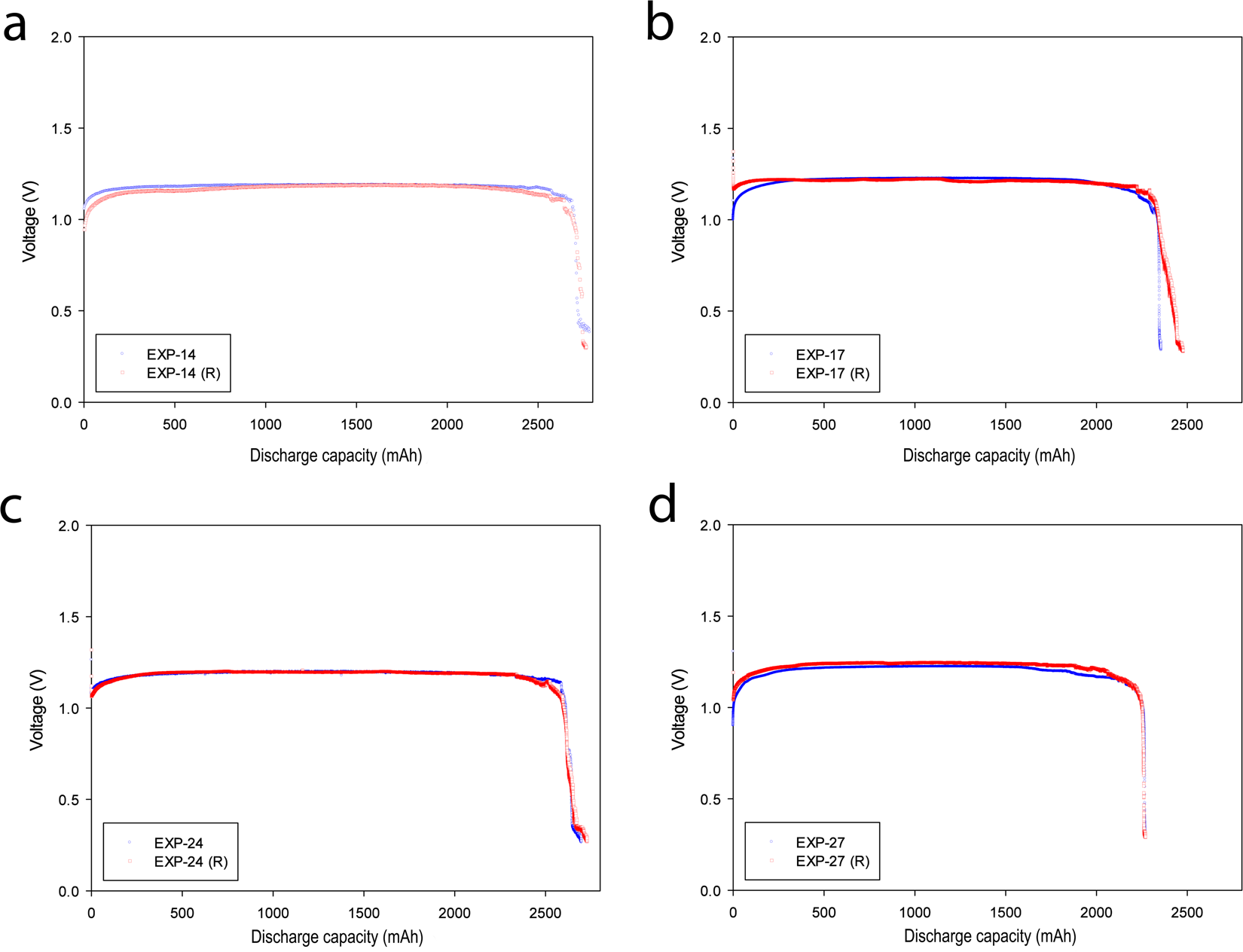

Discharge curves for the four different runs and the repeated experiment for each run: (a) electrolyte flow rate 60 ml/min and discharge current 175 mA (b) electrolyte flow rate 80 ml/min and discharge current 125 mA (c) electrolyte flow rate 100 ml/min and discharge current 175 mA and (d) electrolyte flow rate 120 ml/min and discharge current 125 mA.
