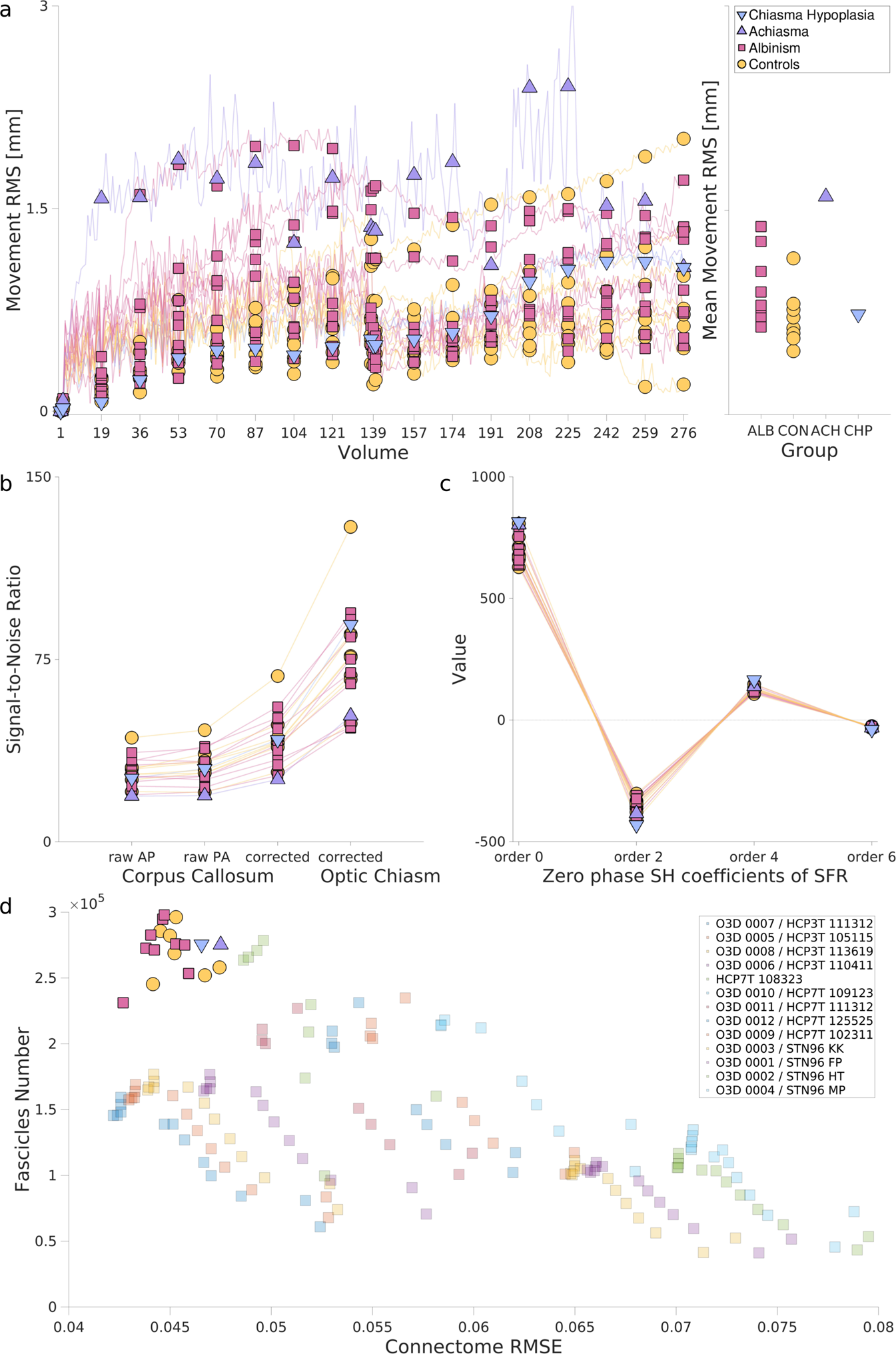

Fig. 5
From: CHIASM, the human brain albinism and achiasma MRI dataset
Quantitative assessment of motion, SNR, and modeling of DW data, as well as the quality of derived tractograms. (a) Left plot displays motion in the DW volumes (expressed as Root Mean Square of voxel displacements within brain mask, calculated with respect to the first volume) where 138 volumes with AP PED were followed by 138 volumes with opposite PED. Markers indicate the values calculated for the b0 volumes. The right-hand plot displays the mean motion RMS calculated for each participant. The color code and markers shape correspond to groups: orange circle - control, magenta square - albinism, violet up-pointing triangle - achiasma, blue down-pointing triangle - chiasma hypoplasia. (b) SNR in b0 images for each participant calculated from callosal voxels (selected from raw AP PED DW series, raw PA PED DW series, and corrected DWI) and optic chiasm (only for corrected DWI). (c) Values of zero phase (m = 0) coefficients of SFR calculated for each participant. (d) Results of evaluation of tractogram using LiFE method. Y-axis displays the number of fascicles remaining after filtering with LiFE, x-axis displays voxel-wise error between original signal and the one predicted from optimized tractograms. The bright markers correspond to the published datasets, while the dimmed display results for representative datasets from other publicly available DW repositories (such as 3T and 7T HCP datasets).
