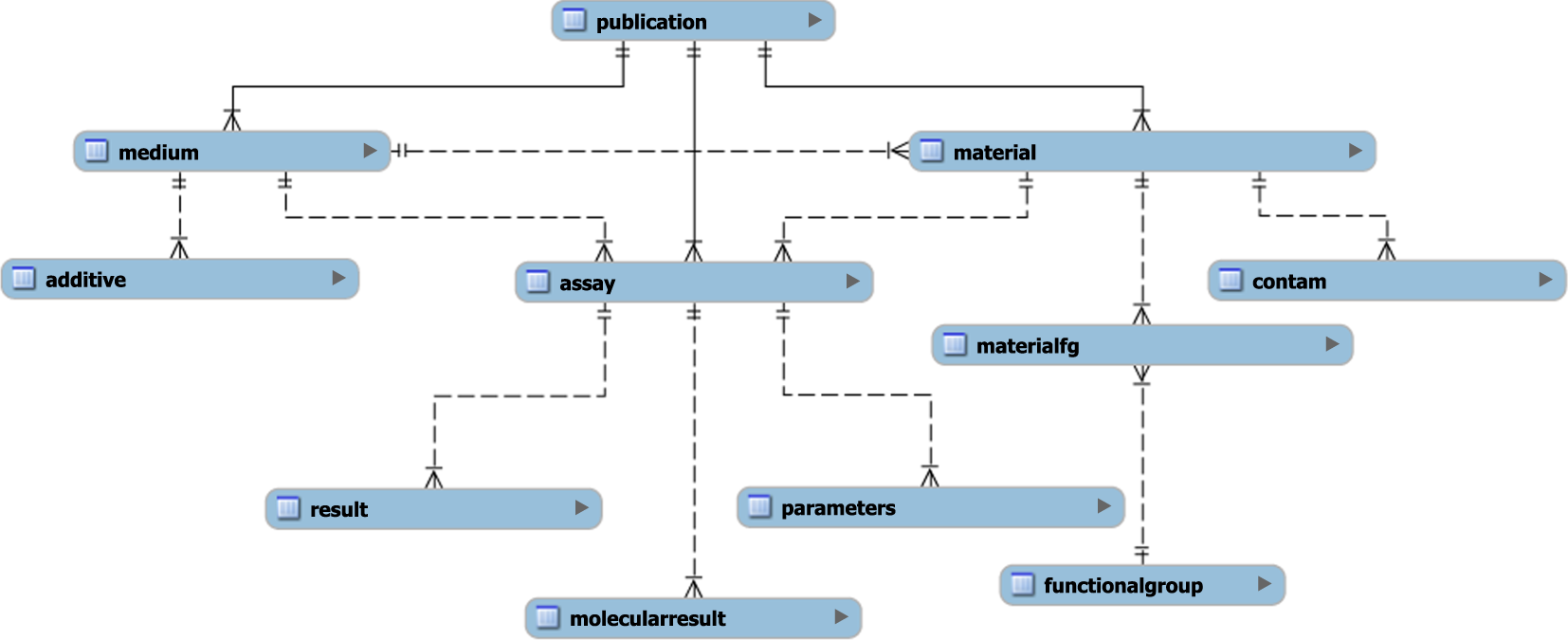

Fig. 1

Overview of the NKB SQL structure. The lines indicate the nature of each relationship. Each relationship is of a one-to-many nature, where the end with two lines is “one” and the end with a triangle is “many”, such as one publication being able to have many mediums.
