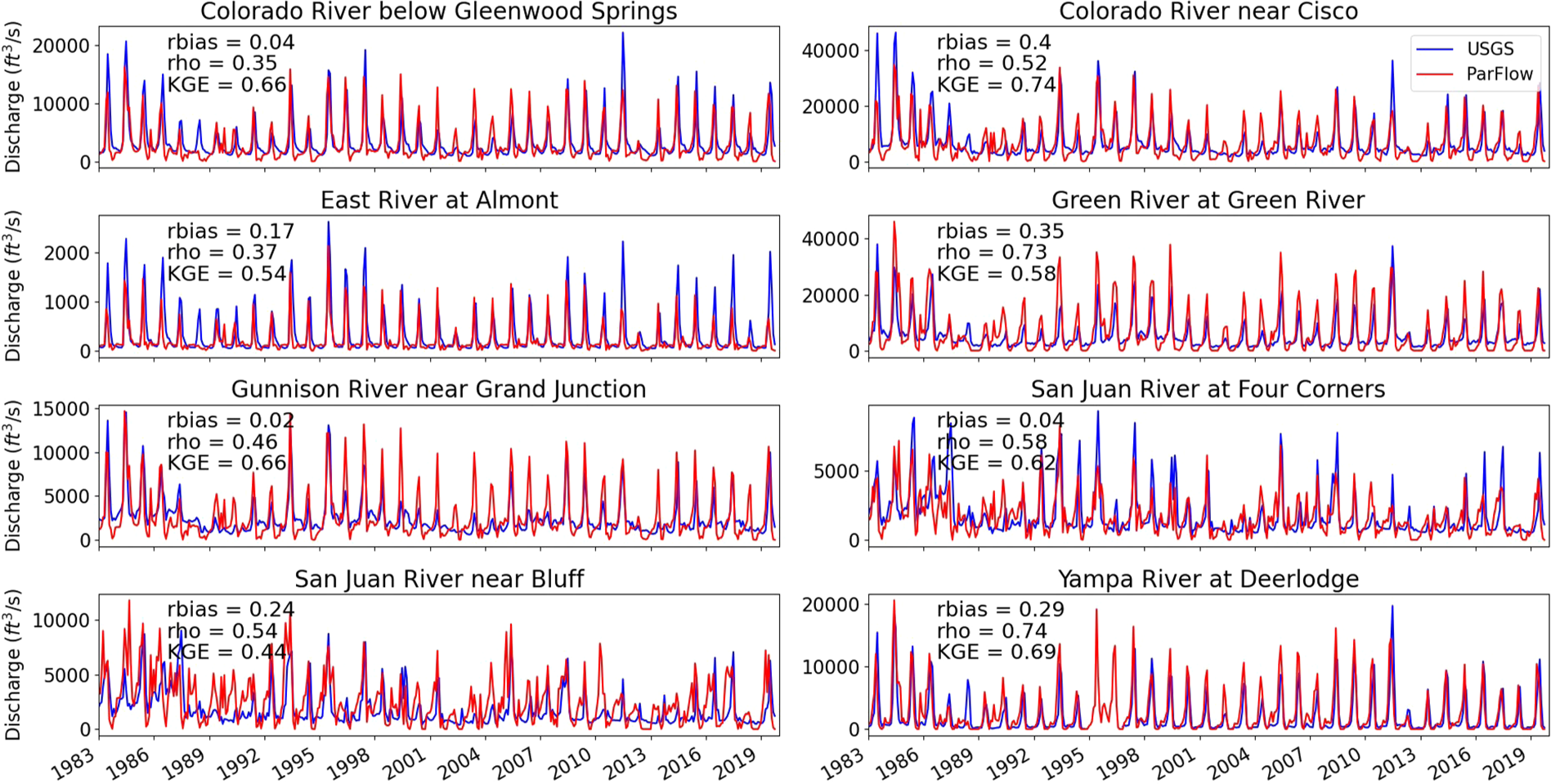

Fig. 2
From: A hydrological simulation dataset of the Upper Colorado River Basin from 1983 to 2019
Plots of simulated and observed streamflow for eight gages within the UCRB. Streamflow predicted by ParFlow is shown using the red line while streamflow predicted by the natural flow model is shown in blue.
