Fig. 3
From: Food webs for three burn severities after wildfire in the Eldorado National Forest, California

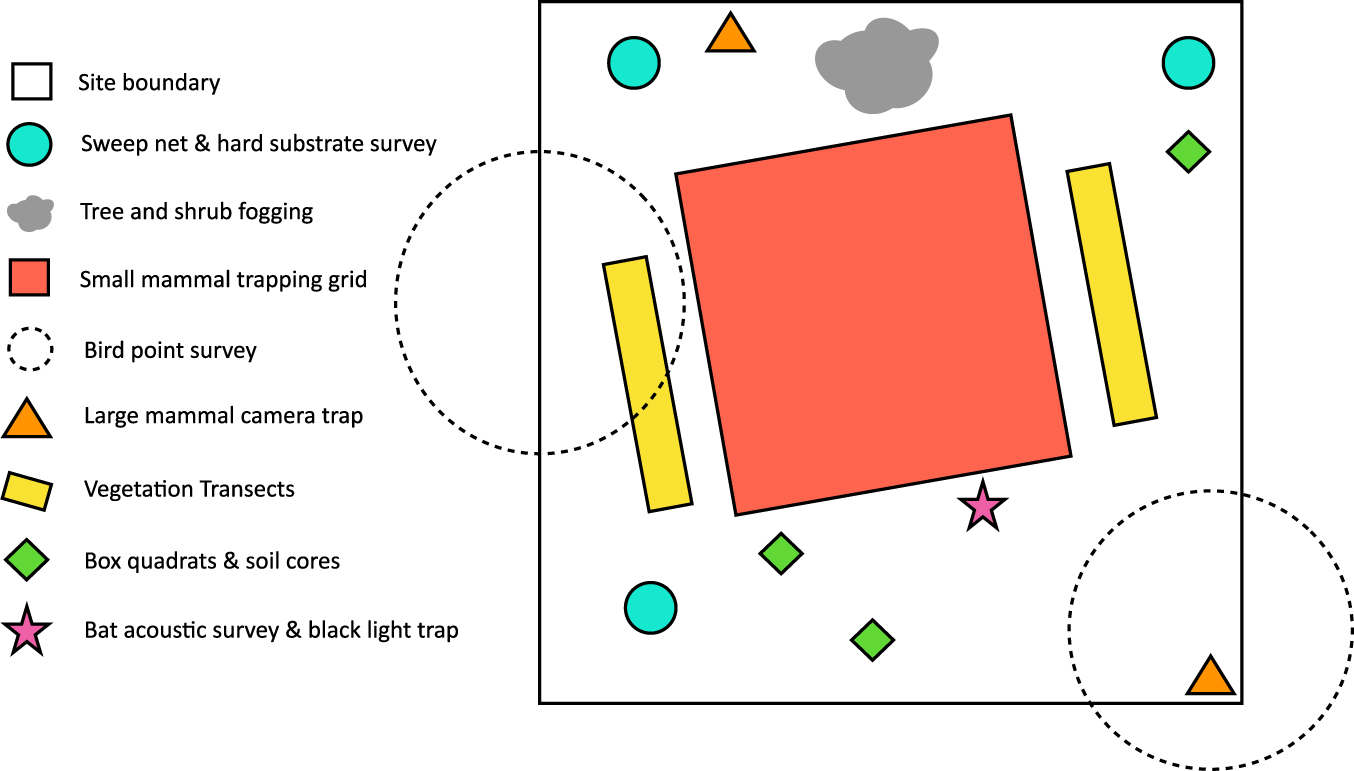

Representative map of sampling design. We employed 19 different methods to estimate the richness and biomass density of organisms in the Eldorado National Forest, California, three years after the King Fire. Methods were conducted entirely within or centered within the 200 × 200 m site perimeter. Methods were paired in space and time when useful (e.g. black lights and acoustic bat surveys), and separated when necessary to avoid interference (e.g. small mammal trapping grid and vegetation transects). All methods at a site were conducted over 4–5 consecutive days.
