Fig. 2 | Scientific Data

Fig. 2

From: Native range estimates for red-listed vascular plants

Fig. 2

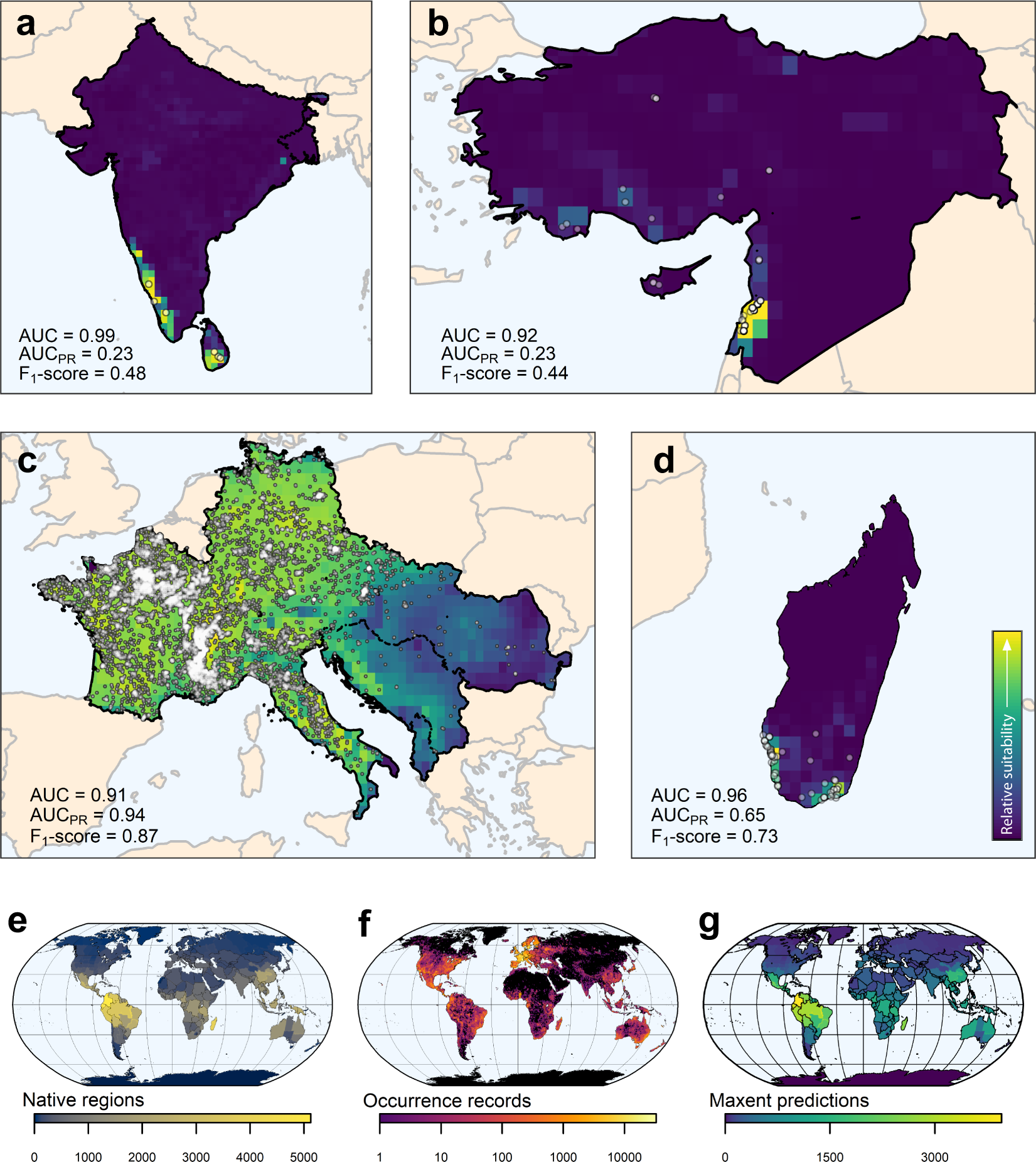

Data examples for randomly selected species and spatial coverage of the dataset. Best performing Maxent prediction, highlighting environmentally suitable conditions within the species native regions (i.e. modelling extent) along retrieved occurrence records (white points) for (a) Amomum pterocarpum, (b) Cedrus libani, (c) Laburnum anagyroides, (d) Megistostegium nodulosum. Performance of the shown predictions indicated by maximum F1-score and the area under the receiver operating characteristics curve for true vs. false positive rate (AUC) and recall vs. precision (AUCPR). Bottom: number of (e) retrieved native regions, (f ) retrieved occurrence records, and (g) generated Maxent predictions across the globe.
