Fig. 10
From: Dynamic World, Near real-time global 10 m land use land cover mapping

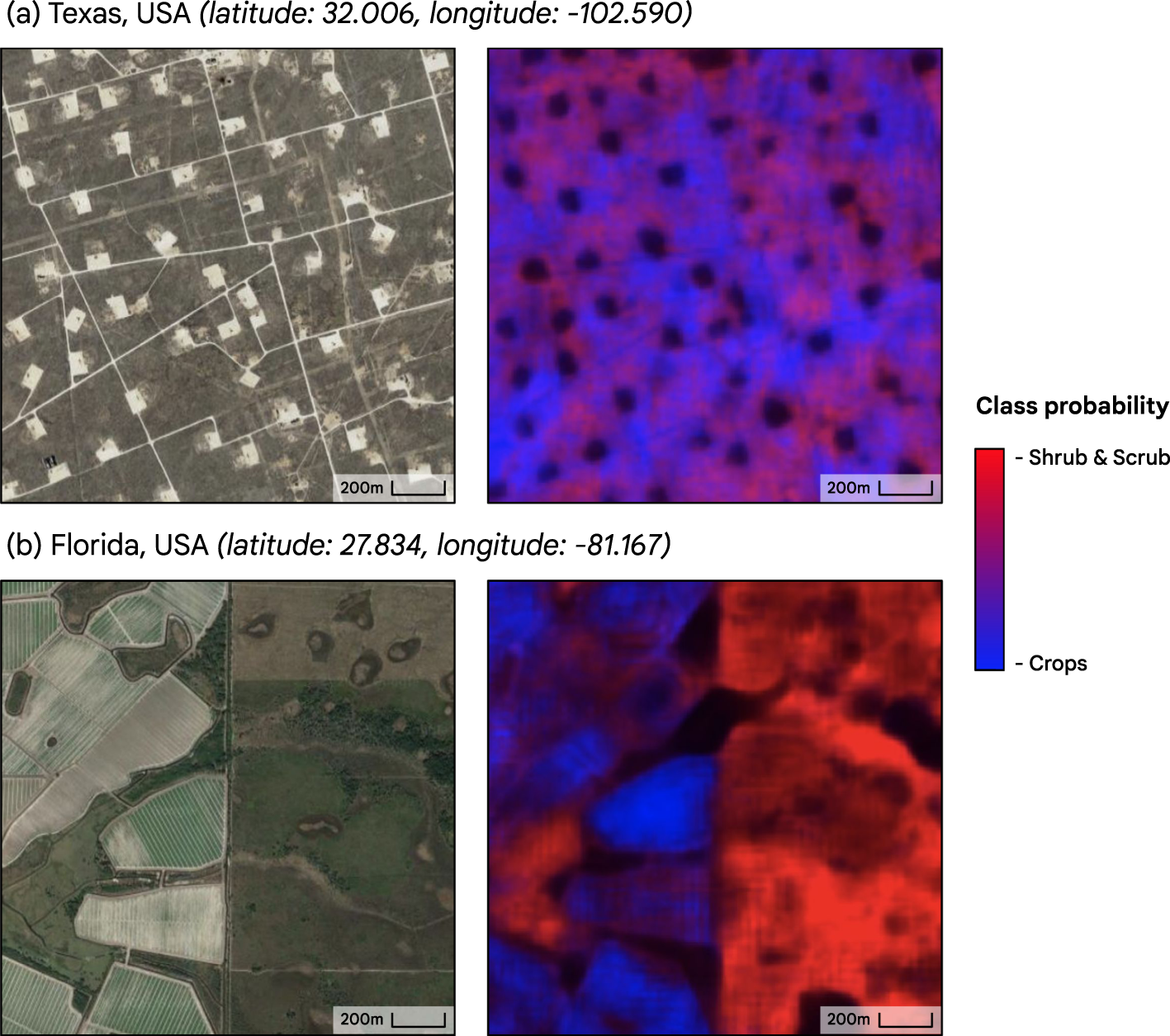

Demonstration of relative weakness exhibited in Dynamic World in separating arid shrubland from crops. (a) An oil field in Texas, USA; (b) Agricultural mosaic in Florida, USA. High resolution image shown for reference. Estimated class prediction probabilities scaled from [0, 1] with red corresponding to the maximum probability of the crops class and blue corresponding to the maximum probability of the shrub & scrub class. In arid shrubland, the estimated probabilities for shrub and crops are more similar (purple) than in temperate or other biomes. The probabilities were averaged per-pixel over July 2021 and the reference imagery was taken from the Google Maps Satellite layer.
