From: Monitoring microseismicity of the Hengill Geothermal Field in Iceland

Fig. 2

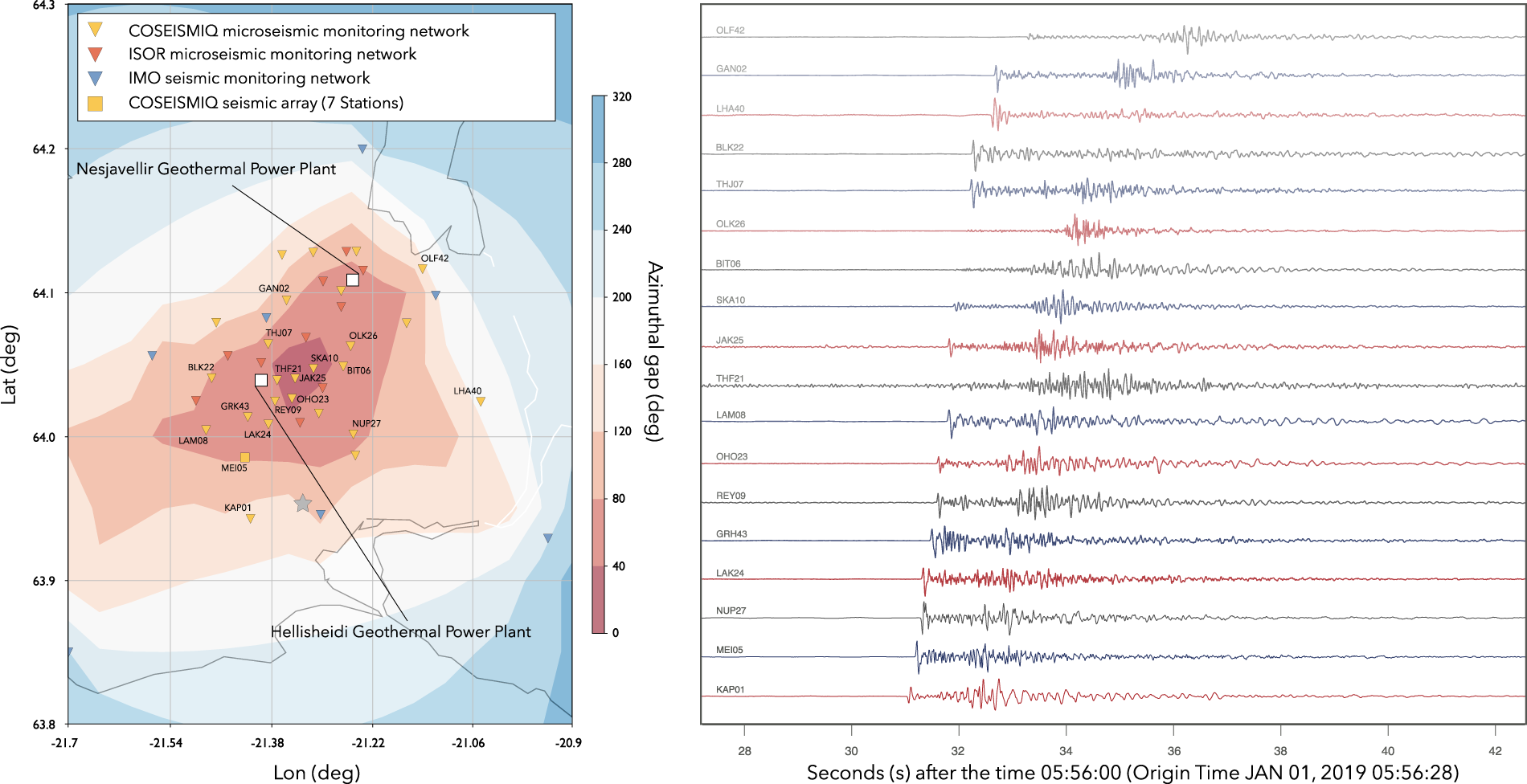

Map of the seismic stations in the Hengill area during the COSEISMIQ experiment. The azimuthal gap for the region using the extended network (COSEISMIQ + ISOR + IMO) is represented by the colour (Left panel). Seismic waveforms (Z component, bandpass filtered between 2 and 50 Hz) from a magnitude ML 1.6 seismic event that occurred on 1.1.2019 at the south edge of the network, Latitude 63.945°N, Longitude −21.327°E at a depth of 7.0 km (Right panel).
