Fig. 8
From: Monitoring microseismicity of the Hengill Geothermal Field in Iceland

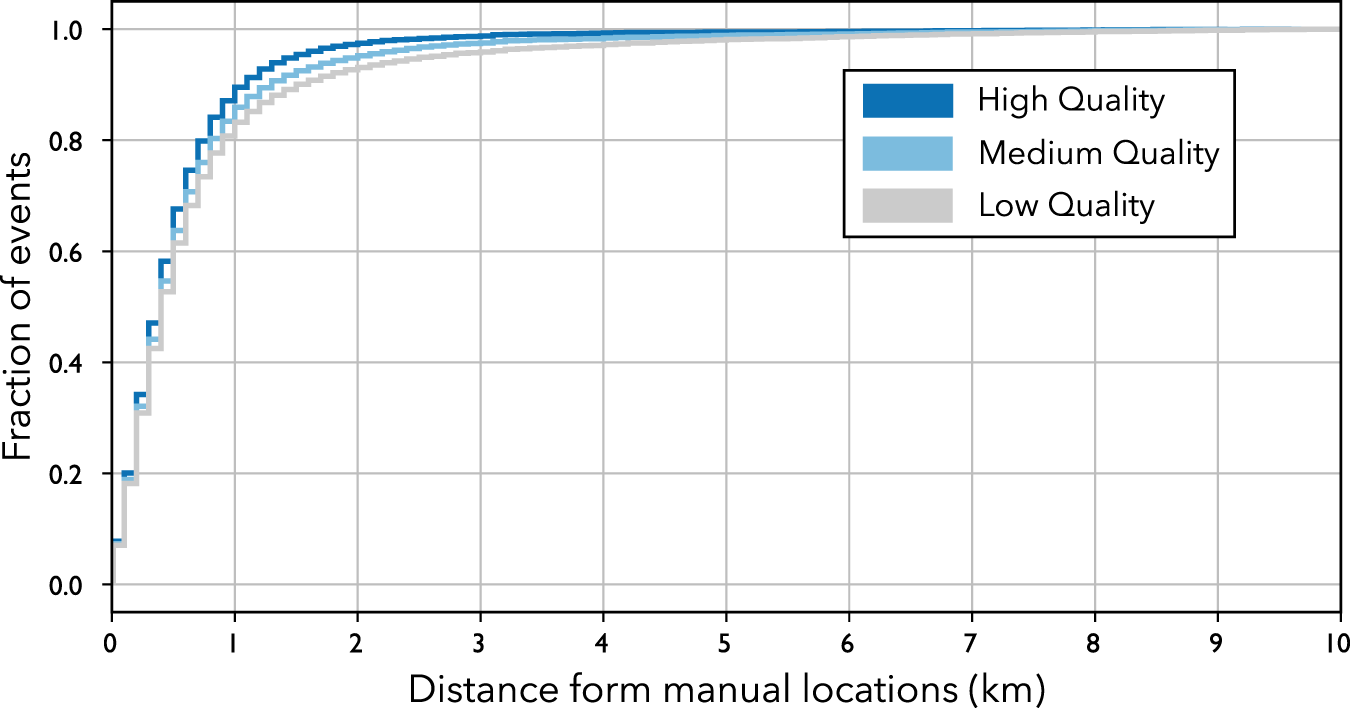

Cumulative distribution of the distances between the automated and manual locations (hypocentral distances) for each matched event in the 3 catalogues. Results for low (grey color), medium (light blue) and high (dark blue) quality catalogues. Note that we plot the cumulative only up to 10 km distance in order to aid visualization, a small fraction of events have location distances in excess of 10 km.
