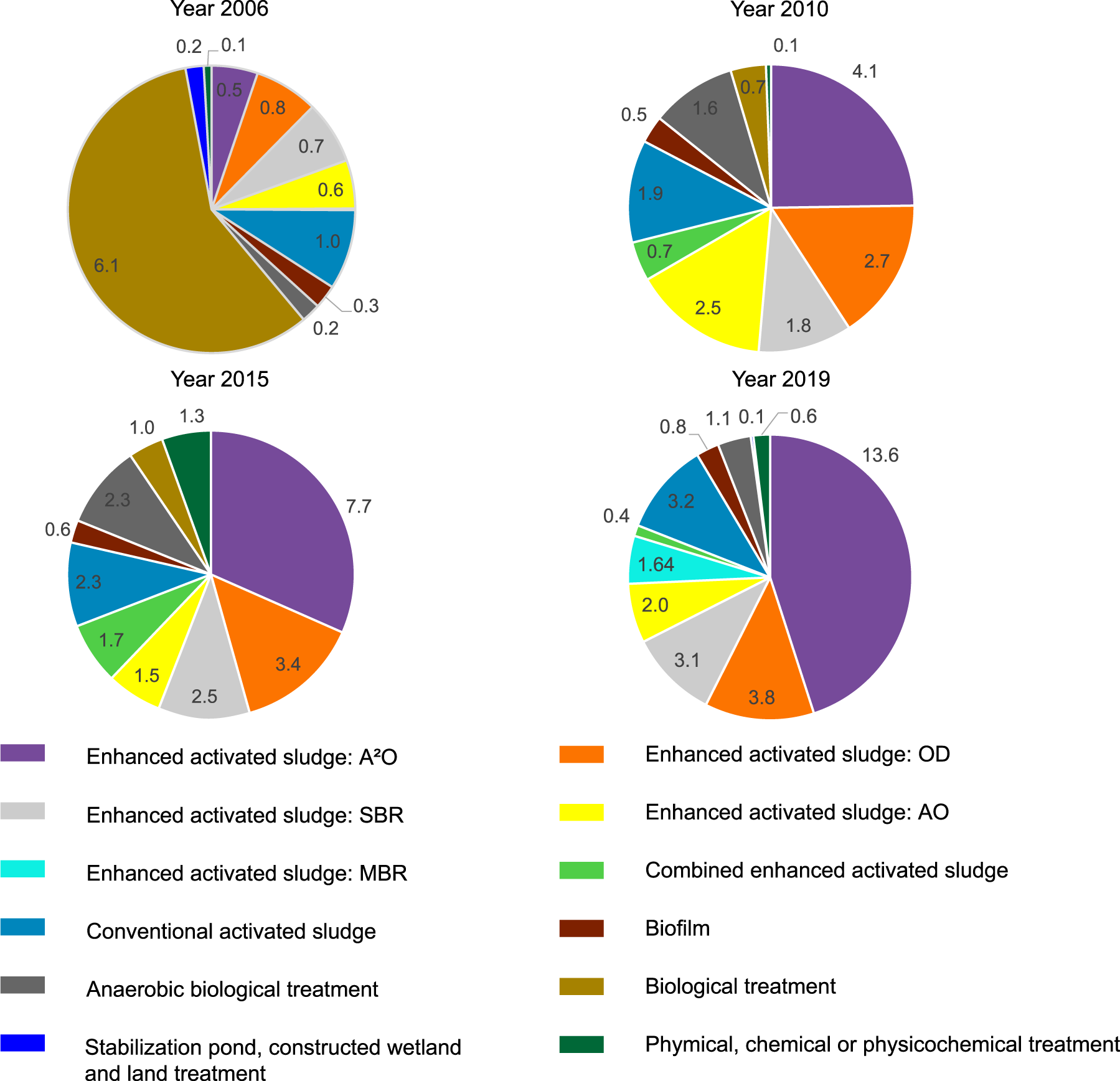

Fig. 4

Structure of treatment technology in total CO₂eq emissions in 2006, 2010, 2015 and 2019 (in million tons CO₂eq). GHG emissions from enhanced activated sludge processes and conventional activated sludge accounted for a large proportion (>80%) in 2010, 2015 and 2019. While the percentage from biological treatment process was very high (58%) in 2006, because for some WWTPs, their subcategories of biological treatment processes were not reported in the original dataset. In this case, their treatment technologies were named as biological treatment, and their GHG emissions were estimated by emission factors of the process of activated sludge treatment in this study.
