Fig. 11
From: Lightweight Distributed Provenance Model for Complex Real–world Environments

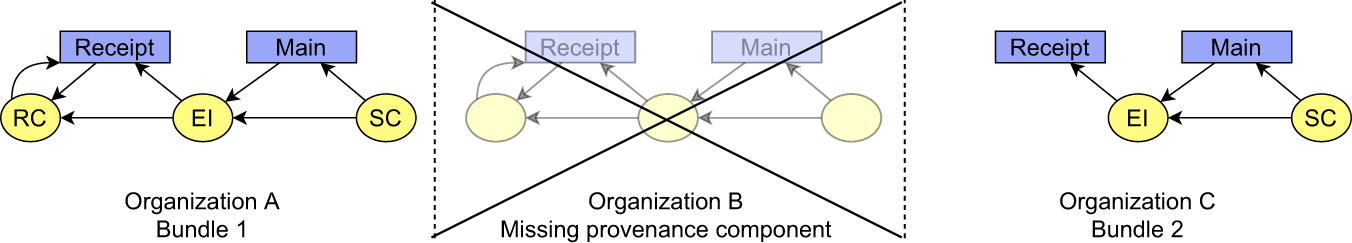

Conceptual schema of the provenance backbone with a missing provenance component. In terms of connectors, the Bundle 1 contains a senderConnector to express that the particular described object has been sent to another organization. The senderConnector does not contain values of its attributes (especially the consecutive bundle identifier and service URL needed to navigation), so technical information to navigate through distributed provenance is missing. On the other hand, the Bundle 2 does not contain receiverConnector, because the state of particular described objects in the time of its sending from the sender is not known to the receiver. The Bundle 2 contains externalInput entity to express that the described process has an external input.
