From: Single cell transcriptome sequencing of inspiratory neurons of the preBötzinger complex in neonatal mice

Fig. 1

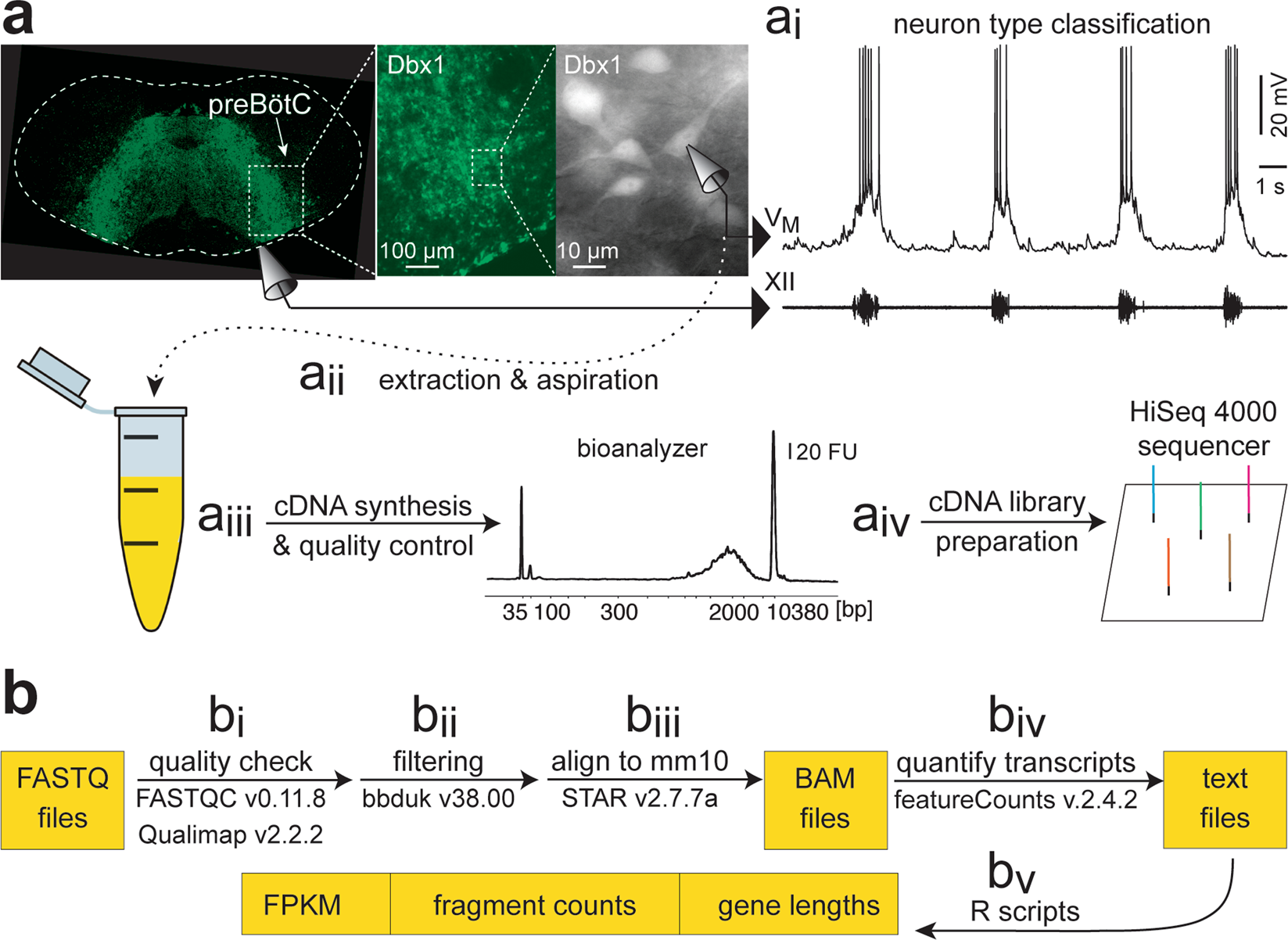

Schematic overview of experimental design. (a) The Patch-Seq workflow. Rhythmically active Dbx1-derived preBötC neurons are recorded in the whole-cell patch-clamp configuration (VM, top trace). The hypoglossal cranial nerve (XII) represents inspiratory-related motor output (bottom trace). a_i – a_iv graphically represent steps in the Patch-Seq workflow as detailed in Methods. (b) Flowchart b_i–b_v showing the bioinformatics workflow as detailed in Methods.
