Fig. 3

From: An Electroencephalography-based Database for studying the Effects of Acoustic Therapies for Tinnitus Treatment

Fig. 3

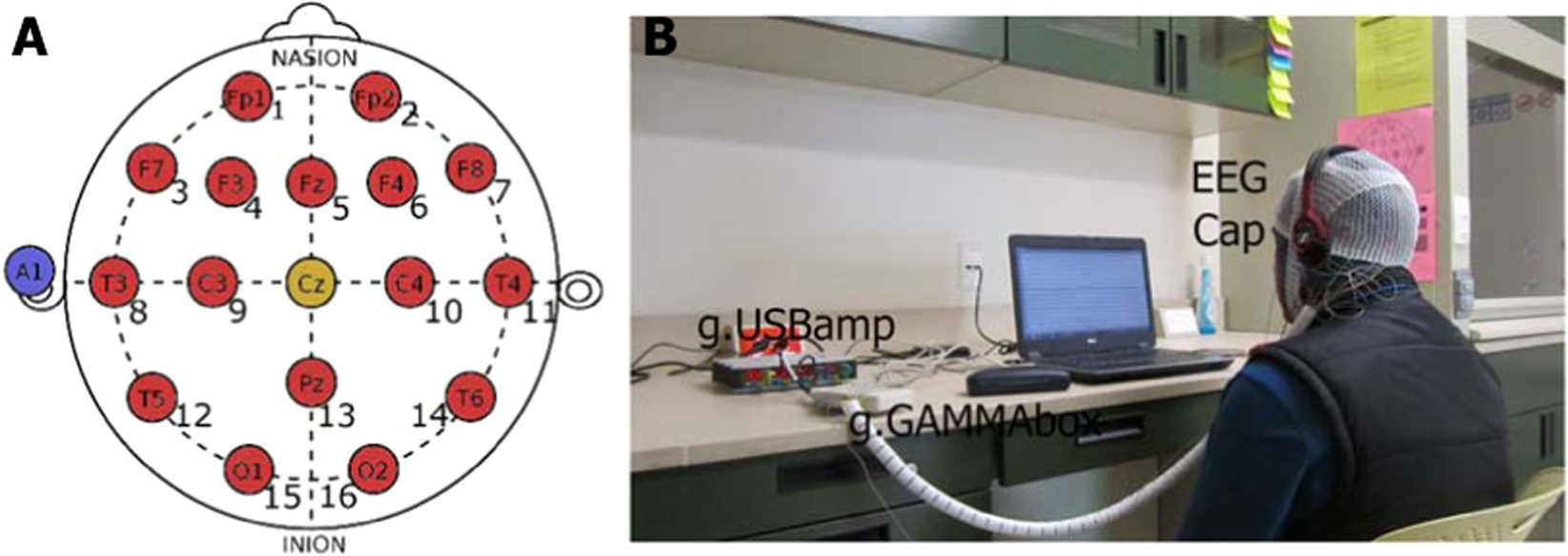

(A) Electrode montage for EEG monitoring. Two pre-frontal (FP1, FP2), five frontal (F7, F3, Fz, F4, F8), four temporal (T3, T4, T5, T6), two central (C3, C4), one parietal (Pz) and two occipital (O1, O2) recording sites are provided in the present database. Reference (blue) and ground (yellow) electrodes are not present in the EEG recording. (B) g.tec system for EEG recording. The g.tec system consisted of an electrode cap of medium size, a biosignal amplifier (g.USBamp), and an electrical isolation system for electrode power supply (g.GAMMAbox).
