Fig. 2

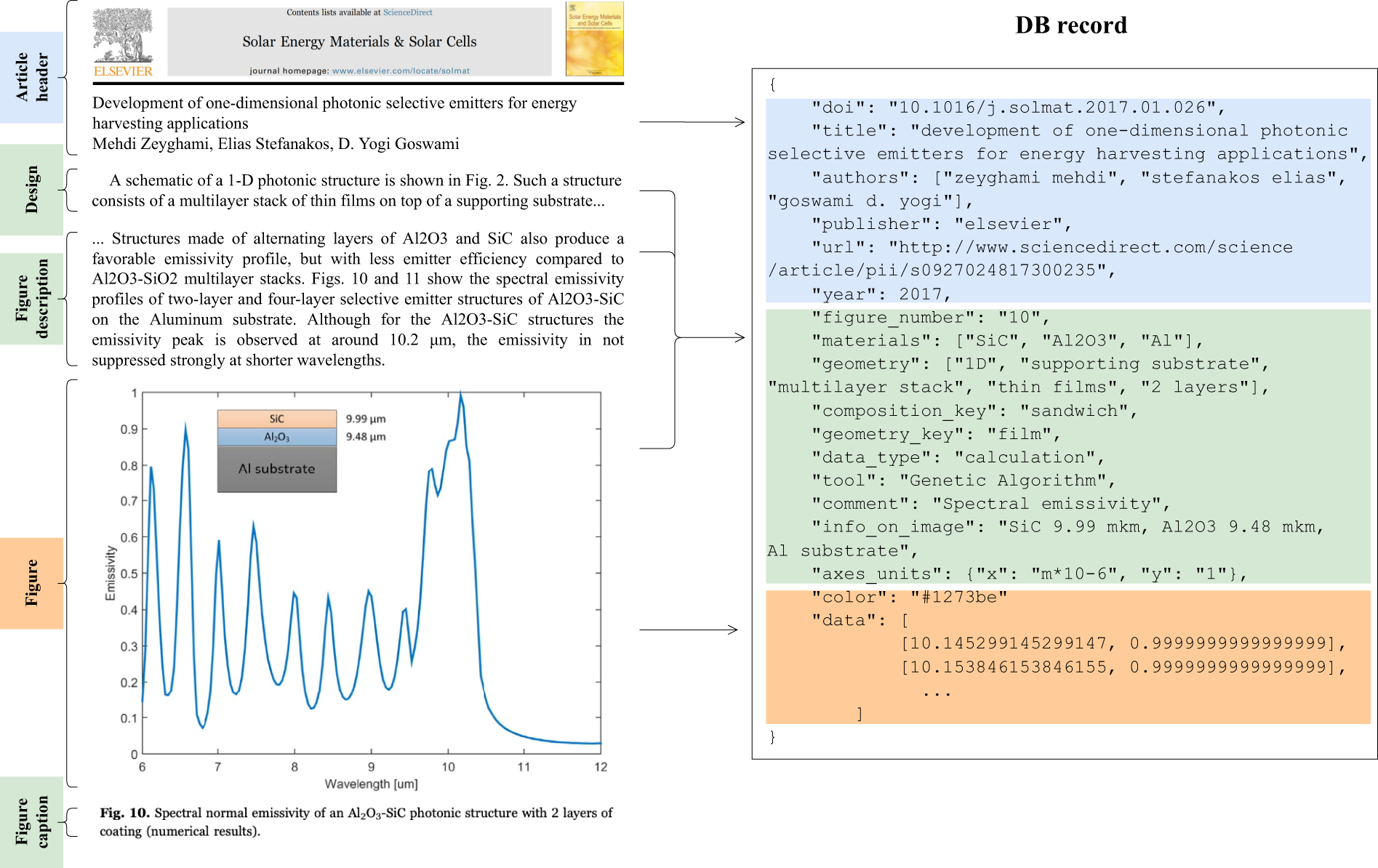

Information extraction from the source paper to the dataset record. Colors correspond to the category of extraction: blue - automated text analysis; green - manual text analysis; orange - automated figure analysis. Information is taken from different parts of an article; for example, materials are listed in the figure description and within the figure itself. This example uses the work of Zeyghami et al.24.
