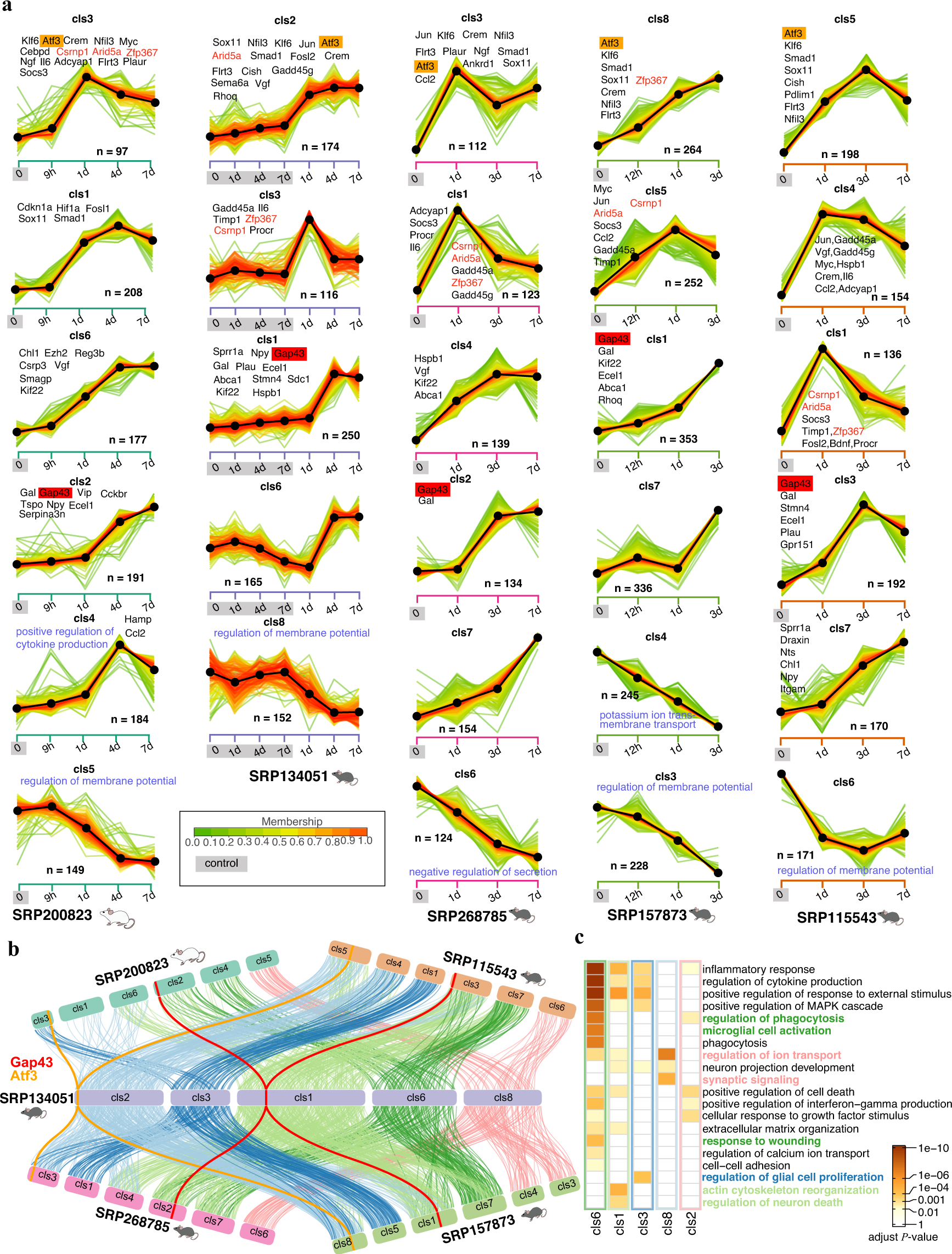

Fig. 5
Clustering analysis of five time-series datasets reveals expression patterns of genes related with pre-regeneration and regeneration. (a) Major gene clusters in five time-series datasets. Major clusters with genes documented related with axon regeneration or with small fluctuations in the contralateral across time points were shown. Expression patterns of all clusters in each dataset were shown in Supplementary Fig. 10. Each line indicated a gene and color indicated membership values. (b) Gene relationship of other four time-series datasets relative to the reference dataset. Gene was ordered in each cluster by membership values. Each line indicated a shared gene between a cluster from the reference dataset and a cluster from the other datasets. Only number of shared genes greater than 10 was shown. Line color indicates distinct clusters from the reference dataset. (c) GO enrichment of genes from five clusters in the reference dataset. Color indicated adjust P-value of enrichment analysis.
