Fig. 4

From: High-resolution estimates of social distancing feasibility, mapped for urban areas in sub-Saharan Africa

Fig. 4

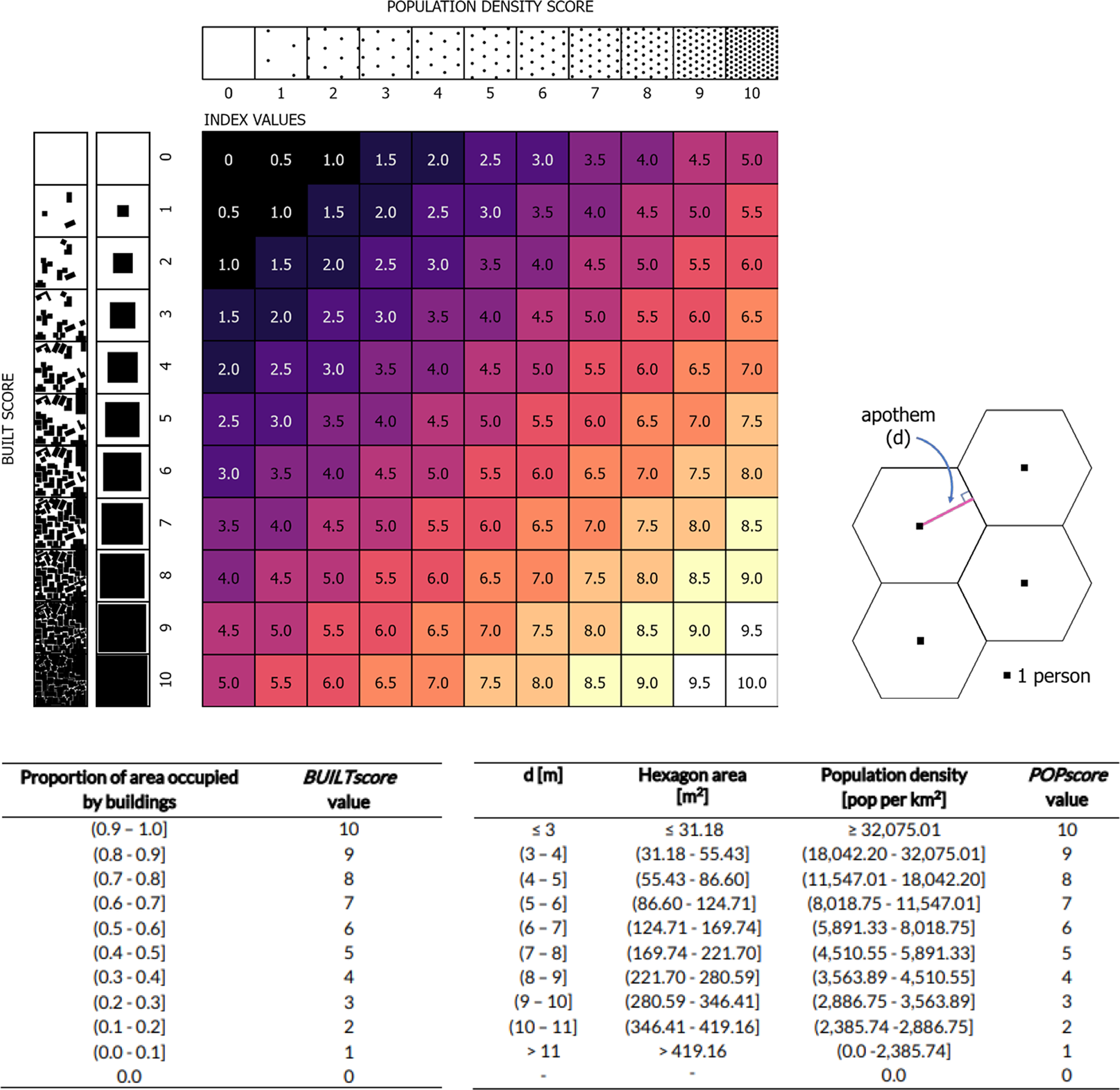

The population density and built scores are evenly weighted in the index, calculated as the mean of the two scores (top). Examples of the spacing of buildings and population for each score value is included, with the built score shown with building footprints representing both a single and multitude of buildings. The population density score is calculated based on a hexagon tessellation with a range of distancing parameters, with the classification of built and population scores provided (bottom).
