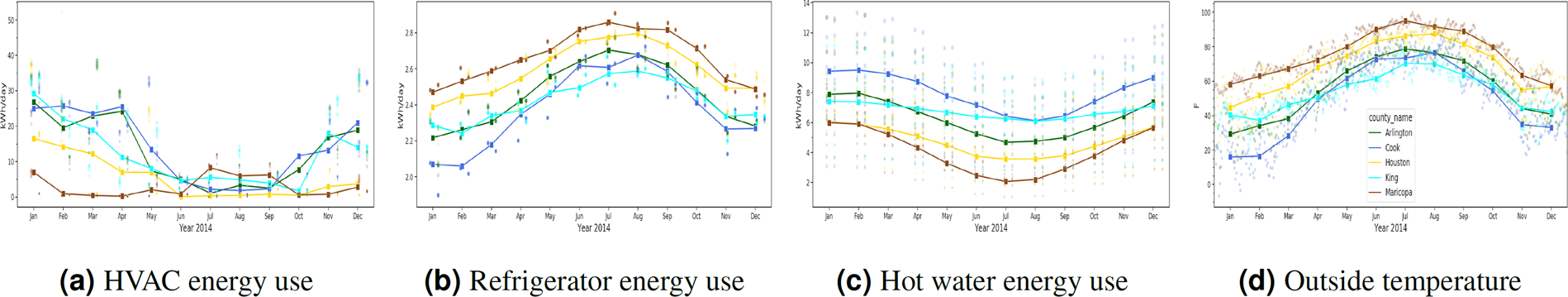

Fig. 10
From: High resolution synthetic residential energy use profiles for the United States
Monthly synthetic energy use changes in end-uses such as HVAC, refrigerator, domestic hot water w.r.t. temperature. The above line charts monthly energy use changes in end-uses such as HVAC, refrigerator, domestic hot water w.r.t. outside temperature. The line chart shows average daily consumption over all households in the target regions. The scatter plot in the background describes average daily consumption for an end-use for sampled days color coded by location. The size of the markers denotes the standard deviation of the end-use consumption. Legend: Arlington, VA (green); Cook County, IL (blue); Houston County, TX (yellow); Maricopa County, AZ (brown); King County, WA (cyan).
