Fig. 6
From: High resolution synthetic residential energy use profiles for the United States

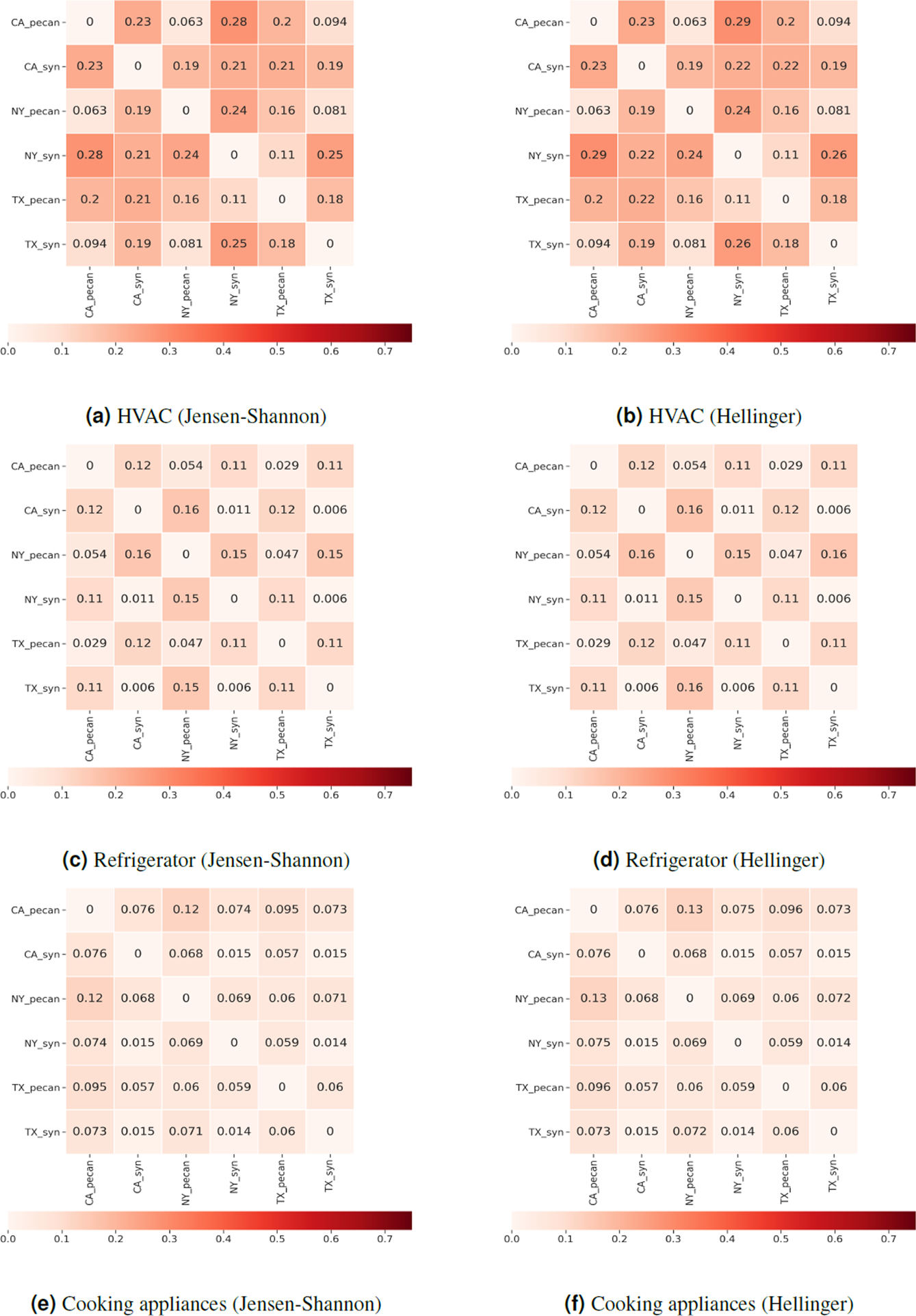

Left column: Jensen-Shannon distance matrices, Right column: Hellinger distance matrices. Each of the column shows Jensen-Shannon distance and Hellinger distance matrices between end-use probability distributions. Each matrix represents distances between two energy usage distributions for a particular enduse (e.g. HVAC, refrigerator, cooking). The row and column headers of the matrix represent different data-sources and different regions and each cell represents the probability distribution similarity/distance value in the form of heatmap, where the bar shows the range of the values on a continuous scale.
