Fig. 1 | Scientific Data

Fig. 1

From: The Materials Provenance Store

Fig. 1

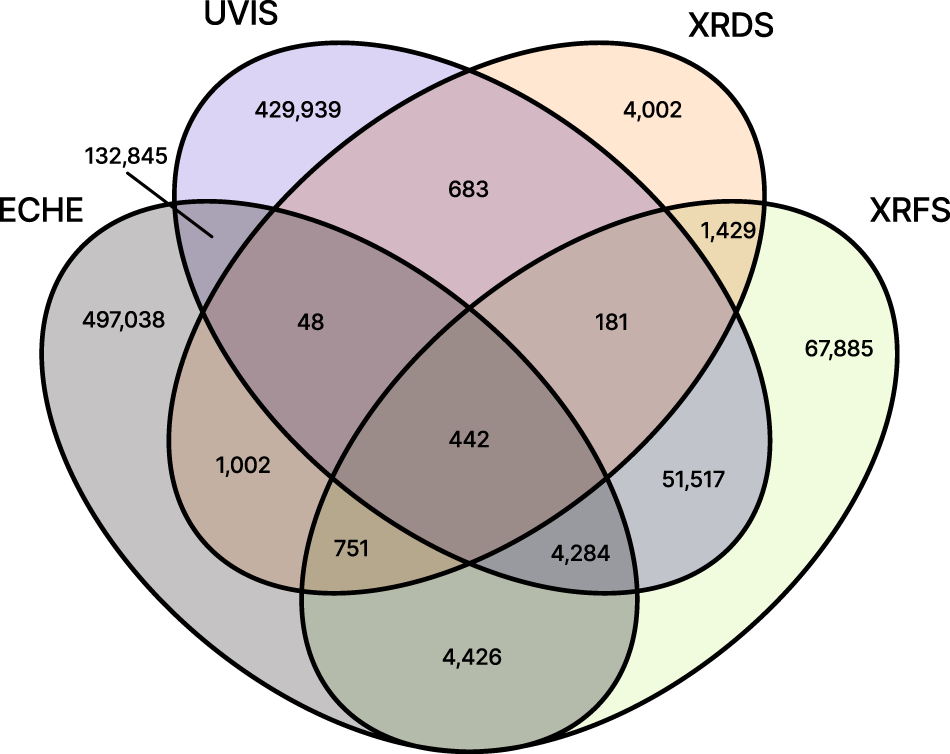

Four-way Venn diagram for the 4 primary types of experimental processes showing how many unique materials samples in the dataset have undergone each combination of process types. The process types are electrochemical characterization (ECHE), ultraviolet-visible optical spectroscopy (UVIS), x-ray diffraction (XRDS), and x-ray fluorescence (XRFS).
