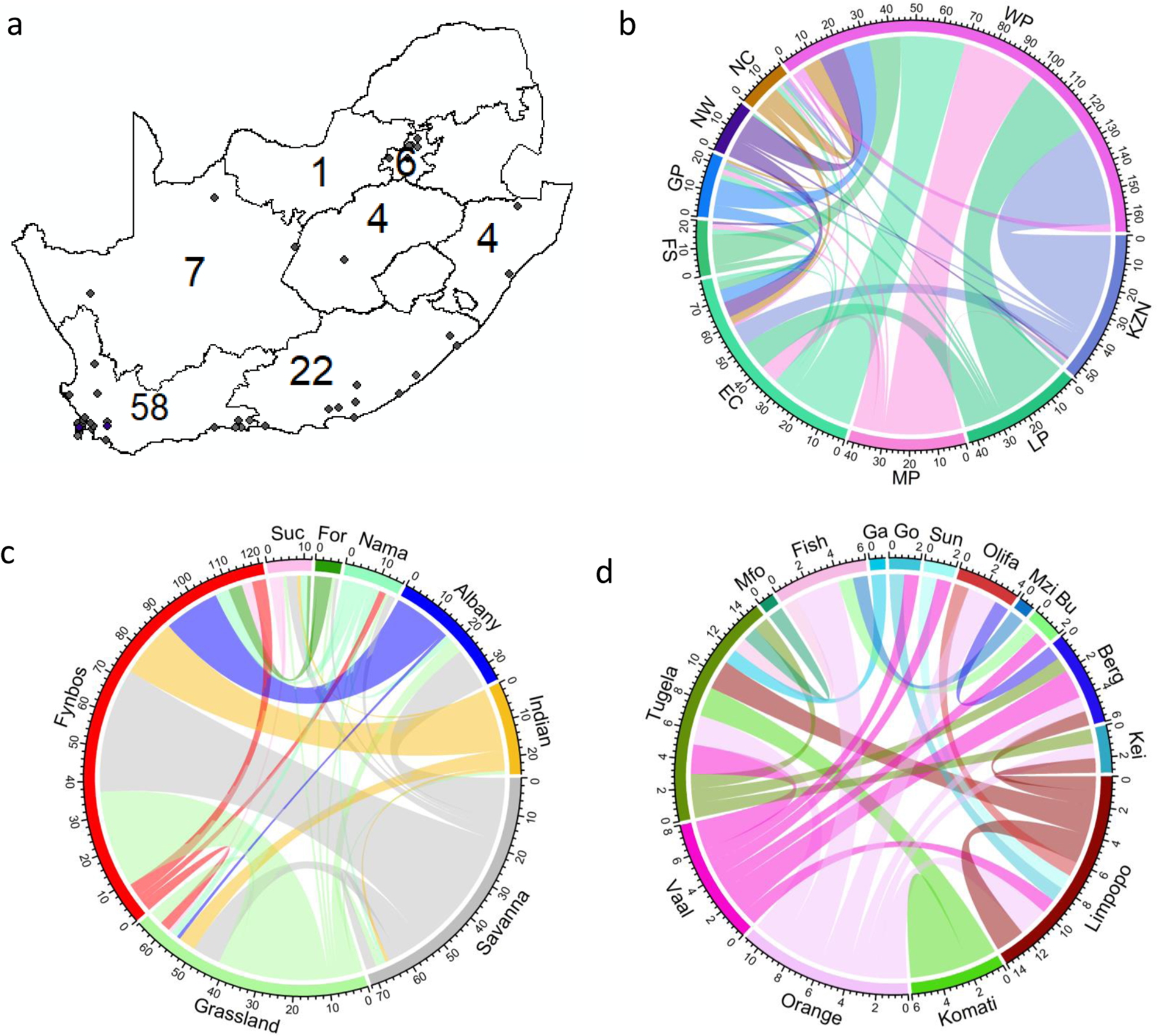

Fig. 5
From: An inventory of native-alien populations in South Africa
(a) A map of the location of native-alien populations for which precise information on location was available; and the exchange of native-alien populations between: (b) the provinces; (c) the biomes; and (d) the river catchments of South Africa. The coloured lines indicate the opposite flow (native species to provinces, biomes and river catchments where they have formed native-alien populations). Each tick on the outside of the plot corresponds to one population and the thickness of the lines is proportional to the total number of populations. Populations were excluded if the origin location within the native range was uncertain. Precise information on location was only available for 59 native-alien populations. The distribution of native-alien populations in South Africa was mapped using ArcGis52 (ESRI 2020). The circlize package in R53 (Gu 2014) was used to draw chord diagrams. Fynbos = Fynbos biome; Suc = Succulent-Karoo biome; Albany = Albany Thicket biome; For = Forest biome; Indian = Indian Coastal Belt biome; Grassland = Grassland biome; Nama = Nama-Karoo biome; Savanna = Savanna biome. Mfo = Mfolozi river catchment, Olifa = Olifants river catchment; Berg = Berg river catchment; Orange = Orange river catchment; Vaal = Vaal river catchment; Tugela = Tugela river catchment; Fish = Fish river catchment; Sun = Sundays river catchment; Bu = Bushman’s river catchment; Kei = Keiskamma river catchment; Go = Gouritz river catchment; Mzi = Mzimvubu river catchment; Ga = Gamtoos river catchment. WP = Western Cape province, EC = Eastern Cape province, NC = Northern Cape province, GP = Gauteng province, FS = Free State province, KZN = KwaZulu-Natal province, LP = Limpopo province.
