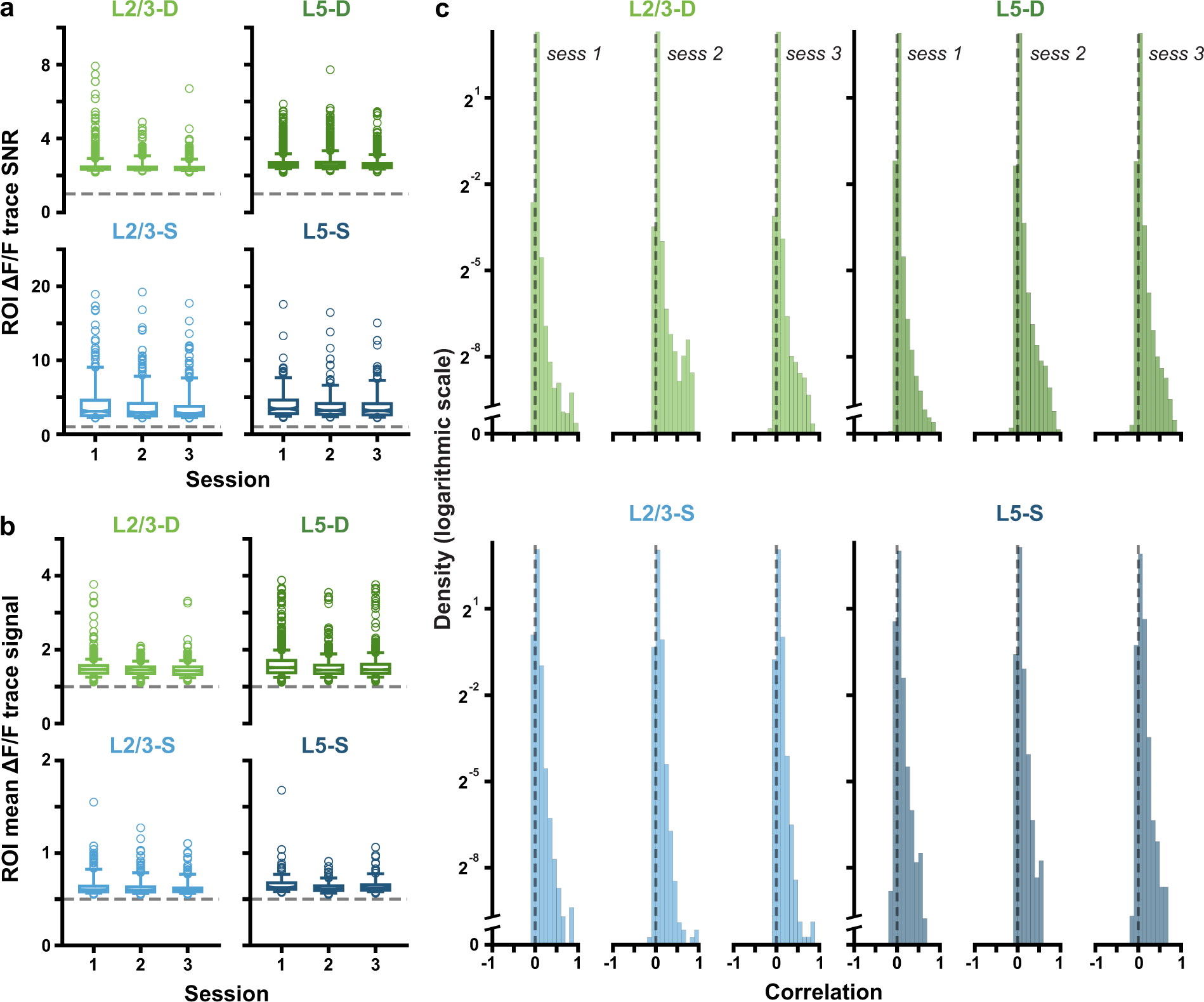

Fig. 7
From: Responses of pyramidal cell somata and apical dendrites in mouse visual cortex over multiple days
(a) ΔF/F trace SNRs for each ROI. For each session and plane, boxplots show the medians of the ROI SNR distributions, as well as the 25th to 75th percentiles, with the whiskers extending from the 5th to 95th percentiles. Dashed horizontal lines mark 1, i.e., noise level. (b) Mean ΔF/F trace signal, where each datapoint corresponds to an ROI. Boxplots drawn as in a., and signal is the mean activity above the noise threshold used to calculate SNR. (c) Distributions of pairwise ROI correlations, plotted on a log scale. The log scale is linearized near 0, as signalled by the axis break, overemphasizing the lower tail for visibility. Pairwise correlations were computed over full session fluorescence traces, which were smoothed using a four-point moving average.
