Fig. 3

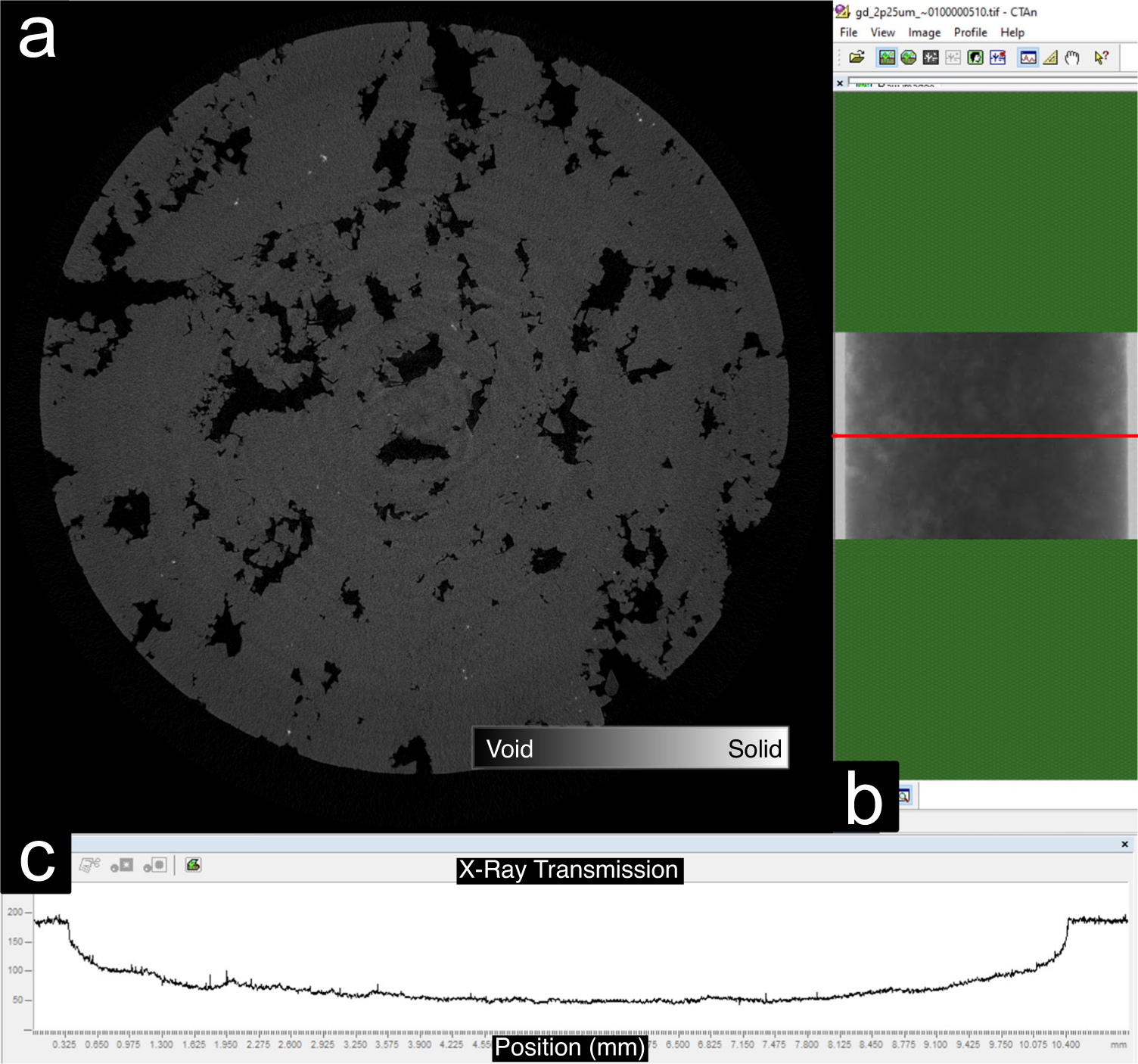

Analysis of X-ray attenuation through the sample. (a) Rock image taken close to the sample center where the darker regions represent the void spaces (b) User interface showing the cross-sectional intensity variations across the center of the sample (in red). (c) Intensity profile along the red line in (b) with a maximum and minimum signal around 200 and 50 grayscale levels, respectively.
