Fig. 11

From: Profile observations of the Arctic atmospheric boundary layer with the BELUGA tethered balloon during MOSAiC

Fig. 11The alternative text for this image may have been generated using AI.

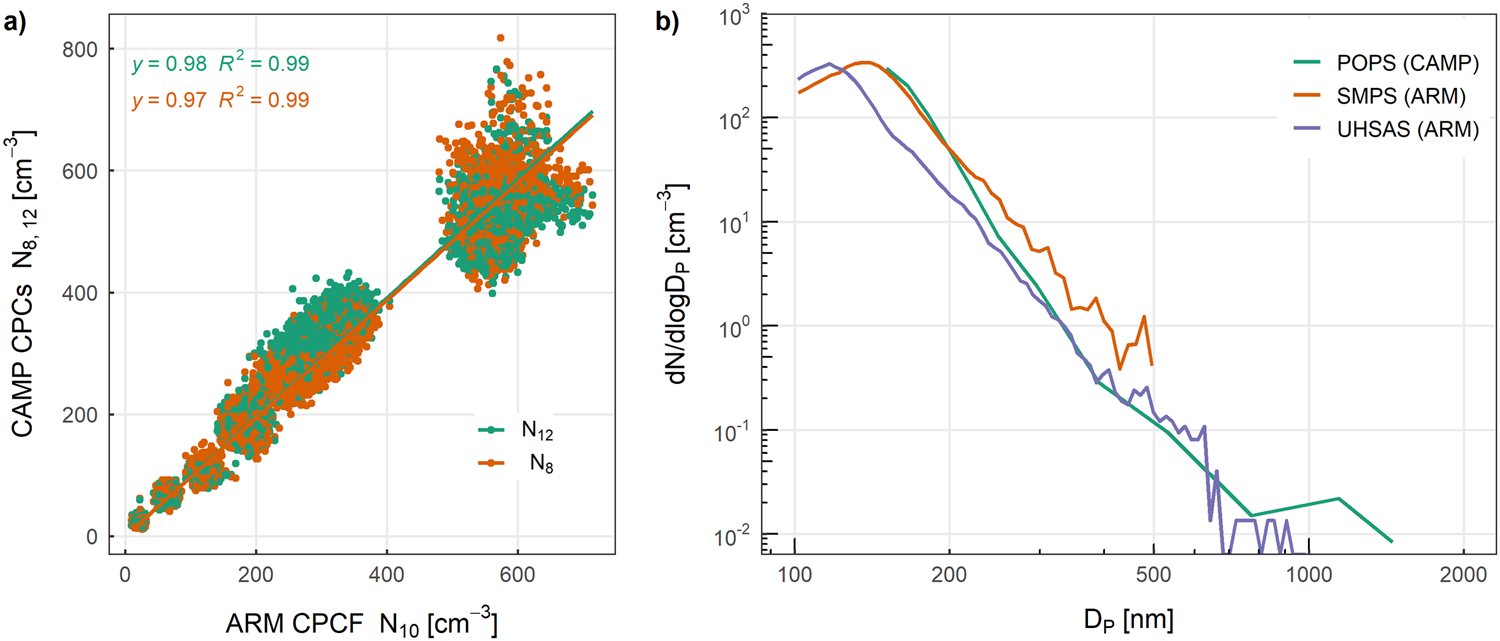

Comparison of (a) particle number concentrations measured by CAMP CPCs with ARM CPCF, and (b) two-hour mean PNSD by CAMP POPS, ARM SMPS, and ARM UHSAS on 14 July 2020. The SMPS measured the mobility PNSD between 10 and 500 nm at a 5 min scanning time. The UHSAS measured the PNSD between 60 and 1000 nm at an optical scattering diameter of 1054 nm every 10 s.
