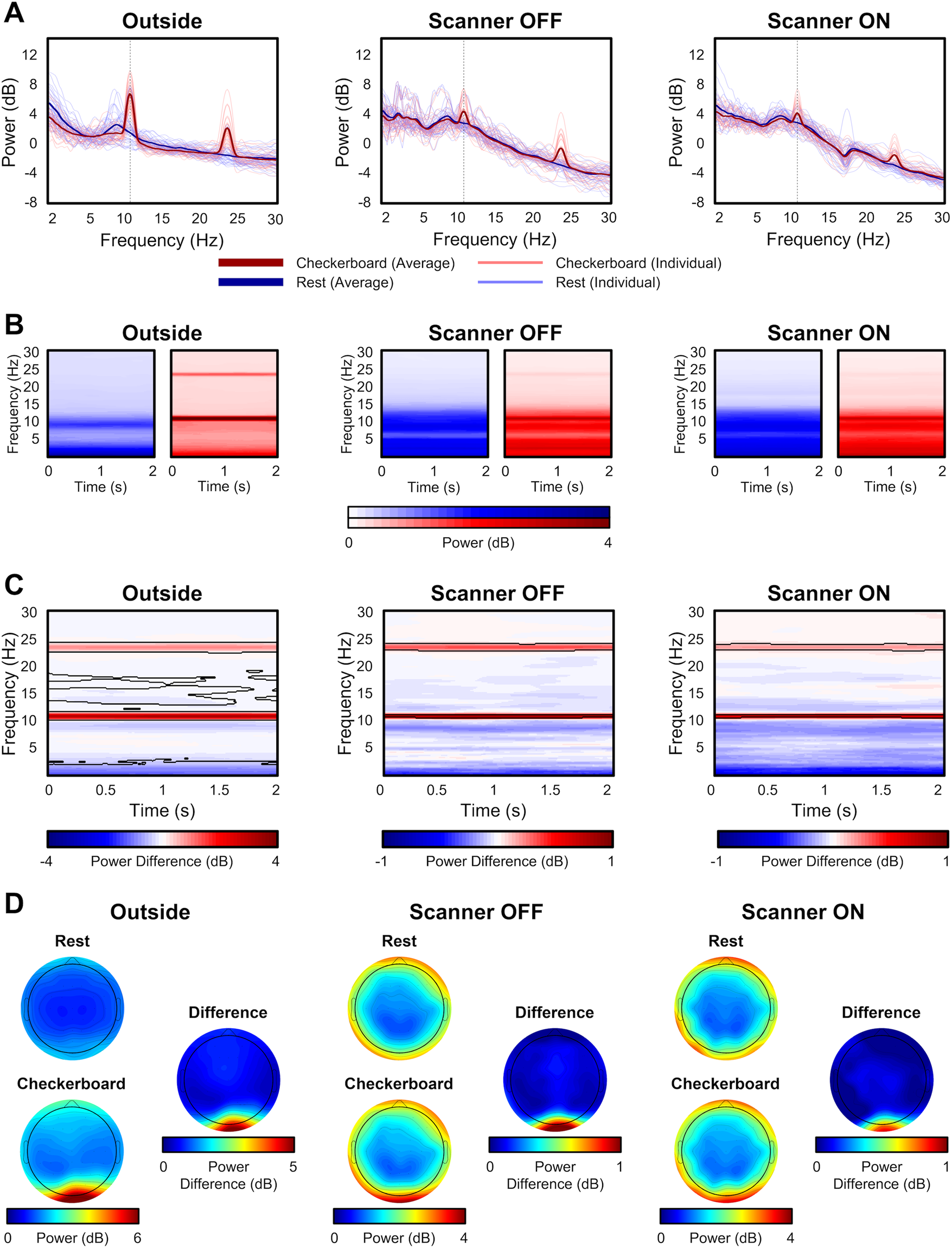

Fig. 2
From: An open-access dataset of naturalistic viewing using simultaneous EEG-fMRI
EEG data validation. (A) Comparison of the power spectrum for participants across scanning conditions: Outside, Inside the scanner with the Scanner OFF, and Scanner ON; (B) Time-frequency comparison of checkerboard and rest blocks over 2 s epochs across conditions; (C) Permutation subtraction of Checkerboard and Rest. Statistically significant regions are outlined by black lines. Natably, the frequency range around 12 and 24 Hz are statistically significant across all conditions; (D) Topographic plots comparing Rest and Checkerboard condition, and their difference, across three conditions.
