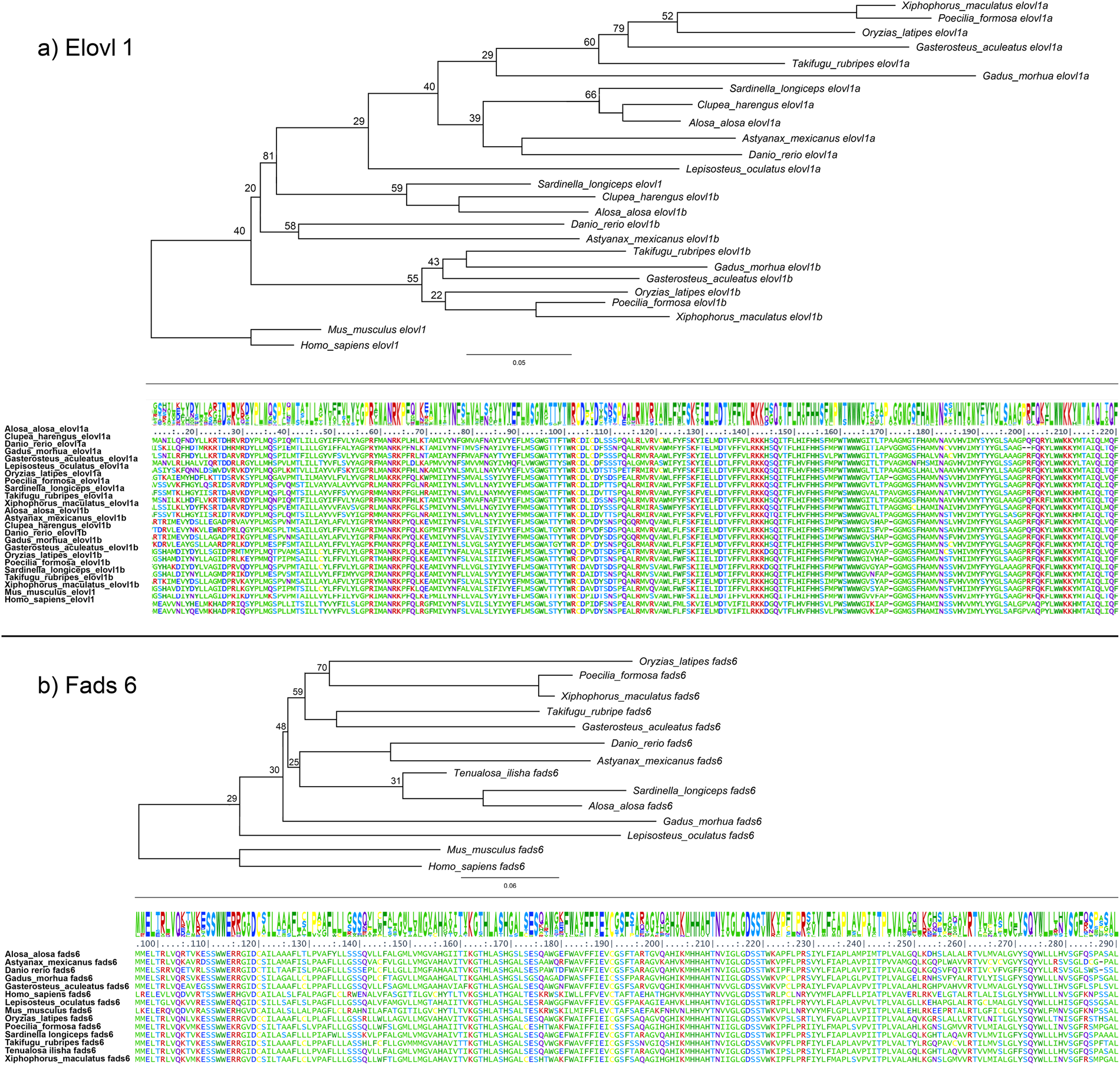

Fig. 3
From: The sequence and de novo assembly of the genome of the Indian oil sardine, Sardinella longiceps
(a) Comparison of the Elovl 1 protein of Sardinella longiceps with selected species and maximum likelihood phylogenetic tree constructed using these sequences (b) Comparison of Fads 6 protein of Sardinella longiceps with selected species and maximum likelihood phylogenetic tree constructed using these sequences. The tree was generated using IQ-TREE v 2.1.4.
