Fig. 9 | Scientific Data

Fig. 9

From: Continental United States climate projections based on thermodynamic modification of historical weather

Fig. 9

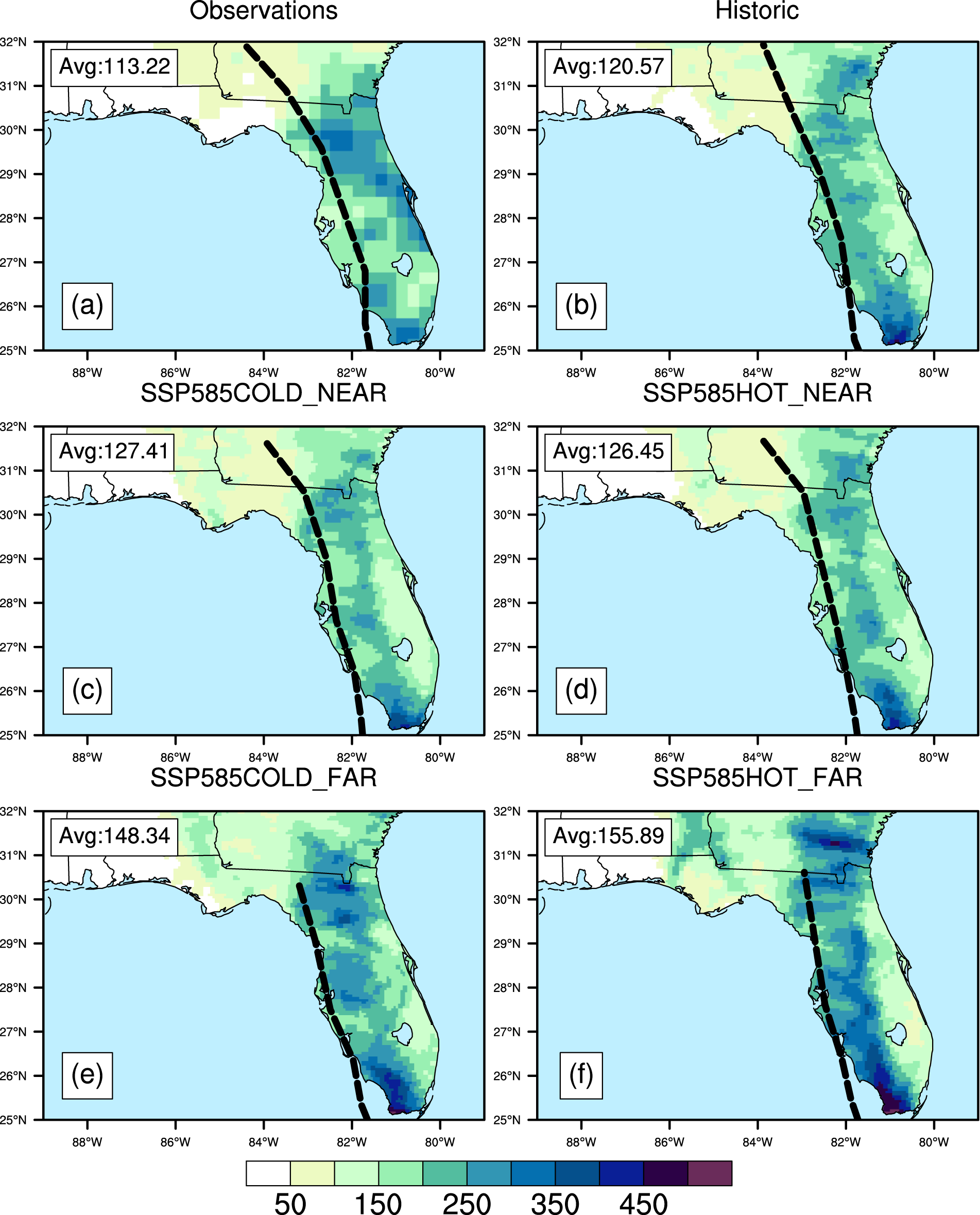

Precipitation from Hurricane Irma over Florida in (a) observations, (b) the WRF Historical simulation, and (c–f) the four SSP585 WRF simulations. Colored contours show accumulated precipitation in mm for Sept. 9 0Z 2017 to Sept. 12 0Z 2017. Black dashed lines show the track (observed or simulated) of Irma. The track terminates earlier in some simulations than others because TCs are only tracked when their maximum 10-m wind speeds meet or exceed 17 m/s. The text in the upper left shows the average accumulated precipitation over Florida only.
