Fig. 5 | Scientific Data

Fig. 5

From: Homologous Pairs of Low and High Temperature Originating Proteins Spanning the Known Prokaryotic Universe

Fig. 5

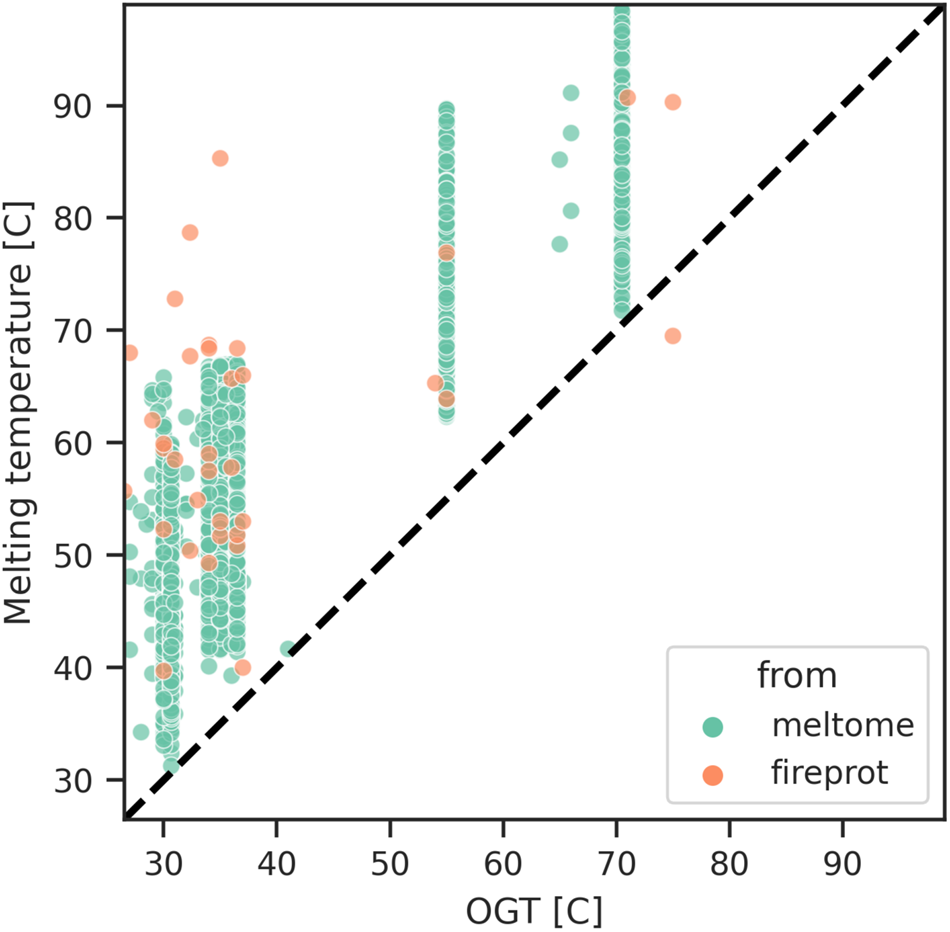

Melting temperature vs OGT, using data from two third party databases. The black dashed line is identity, and almost all examples fall on the side of TM > OGT. The adage that melting temperature is greater than OGT is clearly supported, with a Spearman’s of 0.85 (P value 0.0), and a binomial test of >99% chance of passing with alternative P-value 2.68e−19.
