Fig. 2

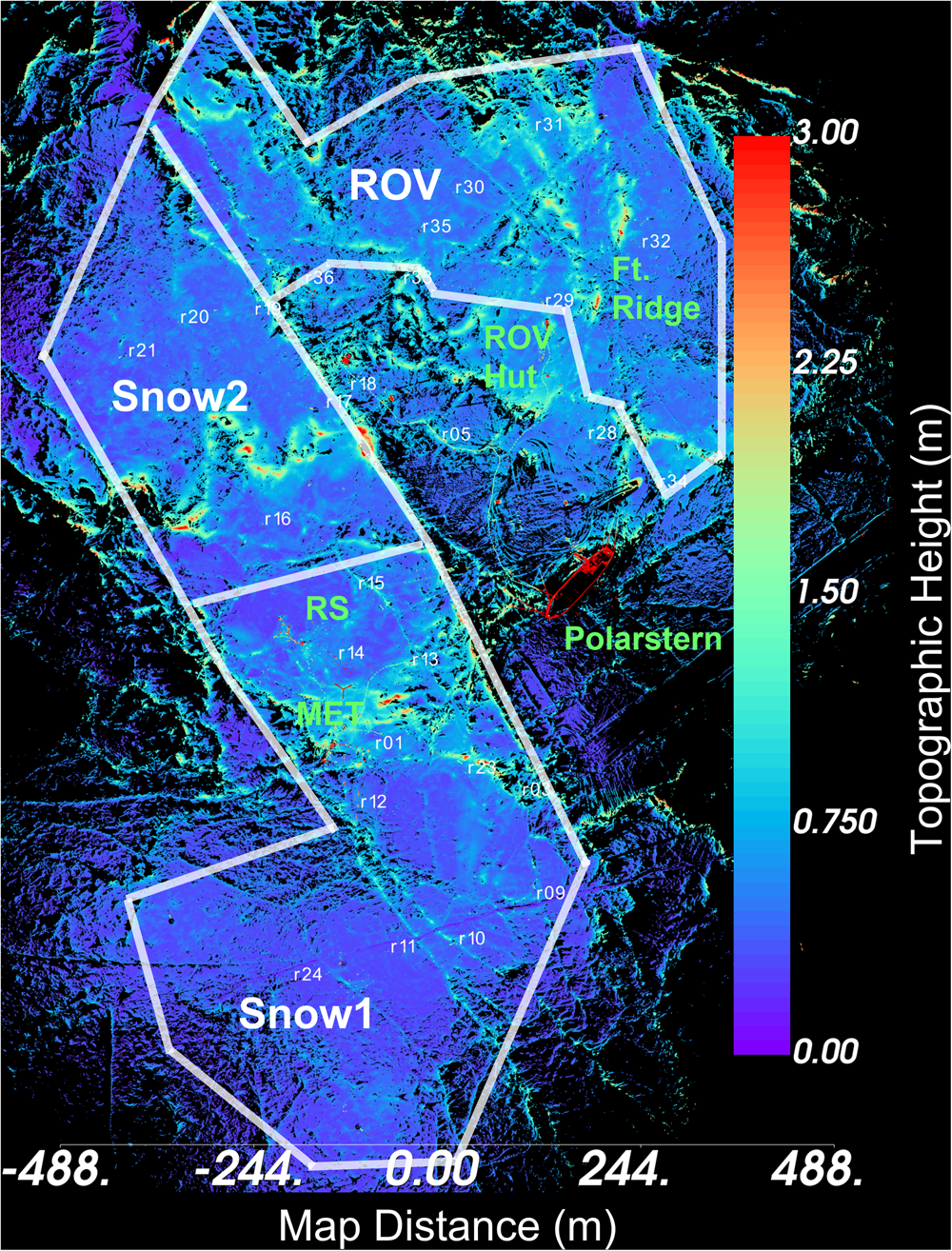

Map of the three Scan Areas in the MOSAiC Central Observatory2 in early February. The Scan Areas are labelled and roughly outlined in white (the exact extent of the measured areas changed due to ice deformation and the number of SingleScans conducted). Notable installations are indicated in green (see MOSAiC snow and ice overview publication2 for more installations). Reflector locations are also shown in white. Reflector heights are provided in Table 2. This map is a rendering of the combined point cloud data from Projects mosaic_rov_040220.RiSCAN (collected on 4 February) and mosaic_01_060220.RiSCAN (collected on 6–7 February). The origin for topographic height is the surface of recently frozen lead (so the values approximately correspond to height above the sea surface).
