Fig. 5

From: Single Cell Map of Human Azoospermia Testis Caused by Cyclophosphamide Chemotherapy

Fig. 5The alternative text for this image may have been generated using AI.

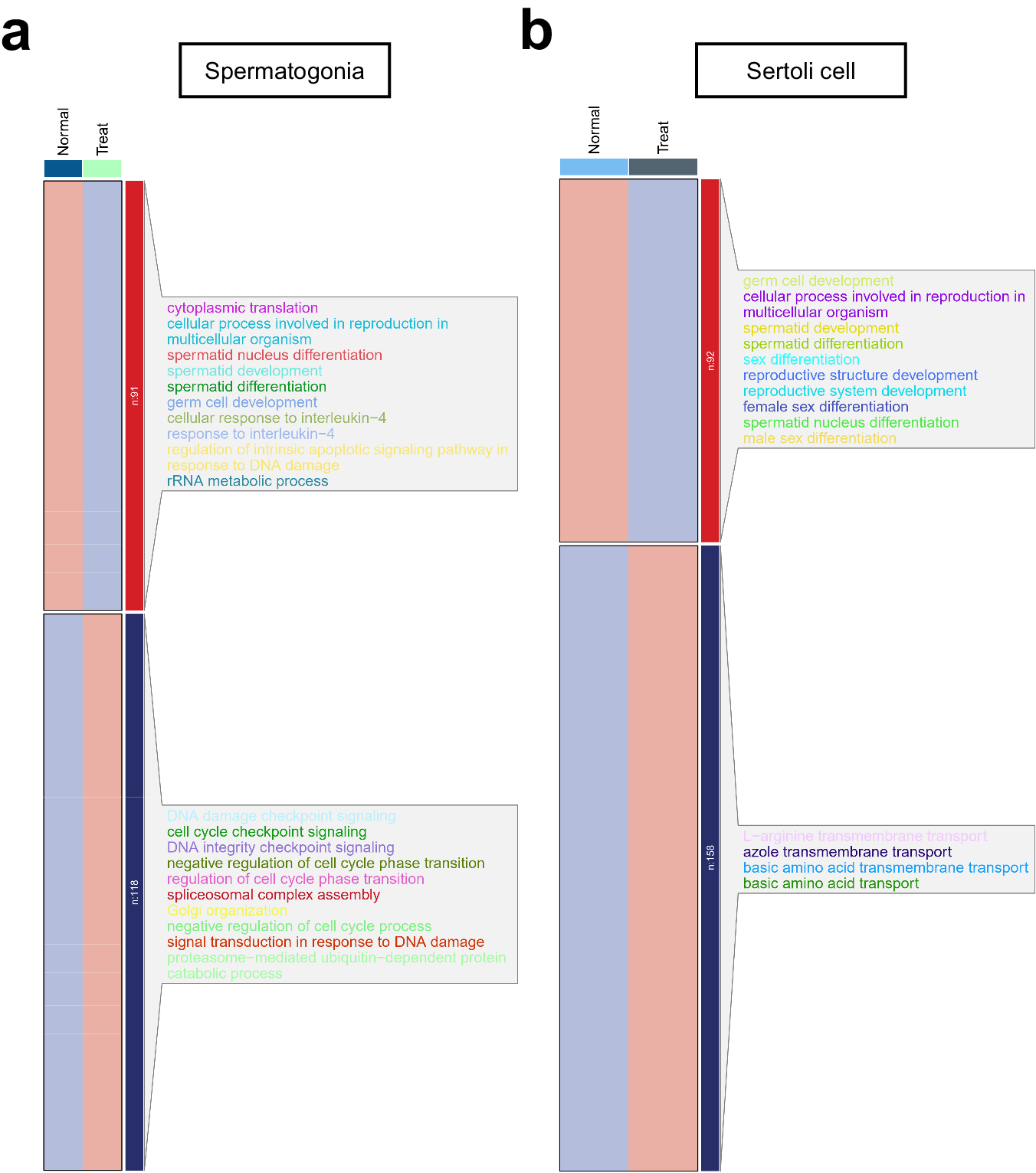

SnRNA-Seq-revealed gene expression and signaling pathway changes of germ and somatic cells after chemotherapy. (a) Differentially expressed genes and GO enrichment analysis in SPG after cyclophosphamide chemotherapy. One hundred and eighteen up-regulated genes and ninety-one down-regulated genes were identified in SPG. (b) Differentially expressed genes and GO enrichment analysis in ST after cyclophosphamide chemotherapy. One hundred and fifty eight up-regulated genes and ninety-two down-regulated genes were identified in ST.
