Fig. 3
From: The draft genome of Spiraea crenata L. (Rosaceae) – the first complete genome in tribe Spiraeeae

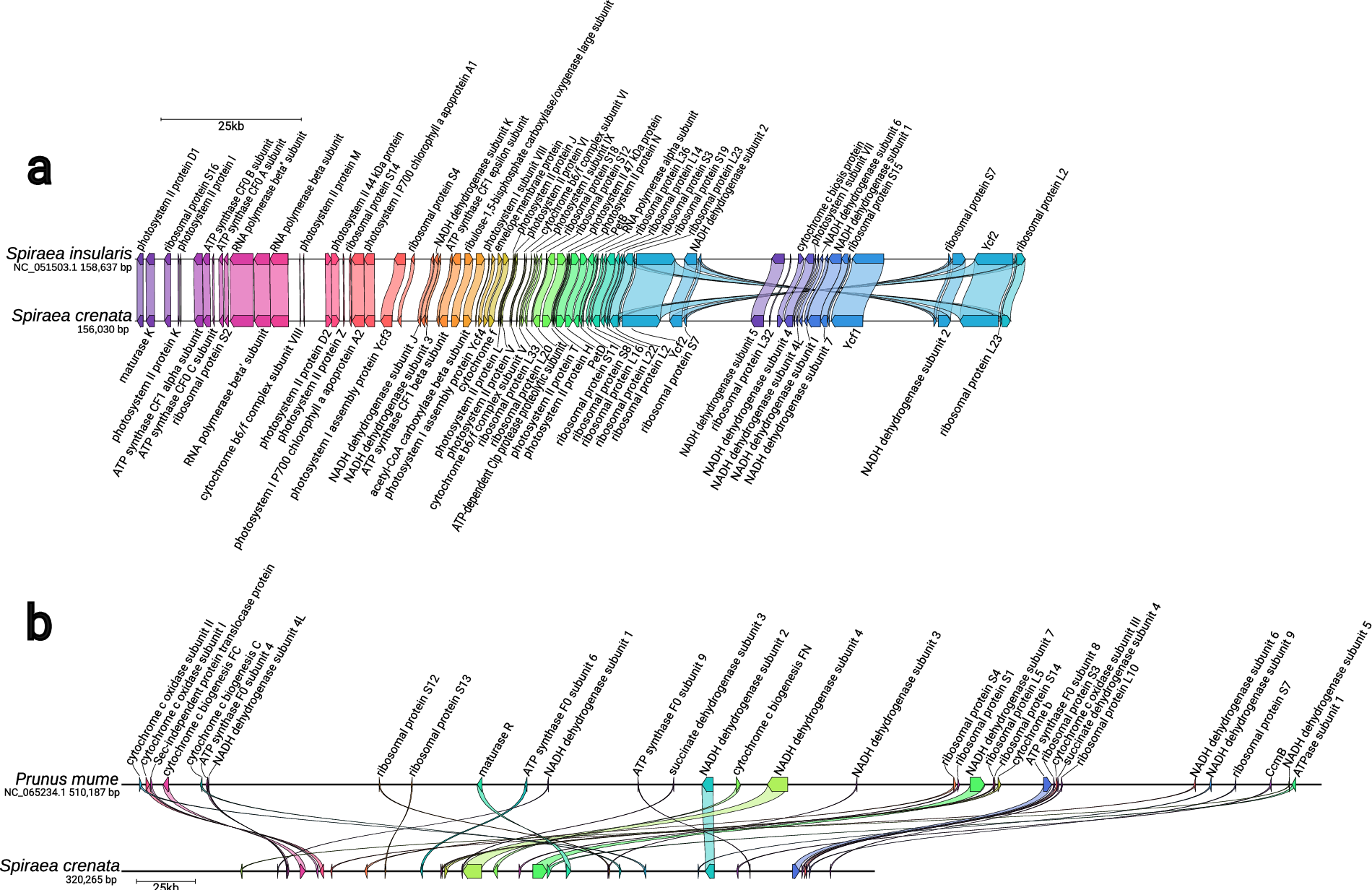

Structural comparison of the de novo reconstructed plastome (a) and mitochondrial genome (b) with the reference used for organellar read identification. The colors of the links refer to the identity of the genes and their width corresponds to the size of the genes. The arrows indicate the orientation of the genes. The horizontal black lines representing the organellar genomes are proportional to the genome size. We have edited the figure output by Clinker in Inkscape to improve readability.
