From: Band-by-band spectral radiative kernels based on the ERA5 reanalysis

Fig. 4

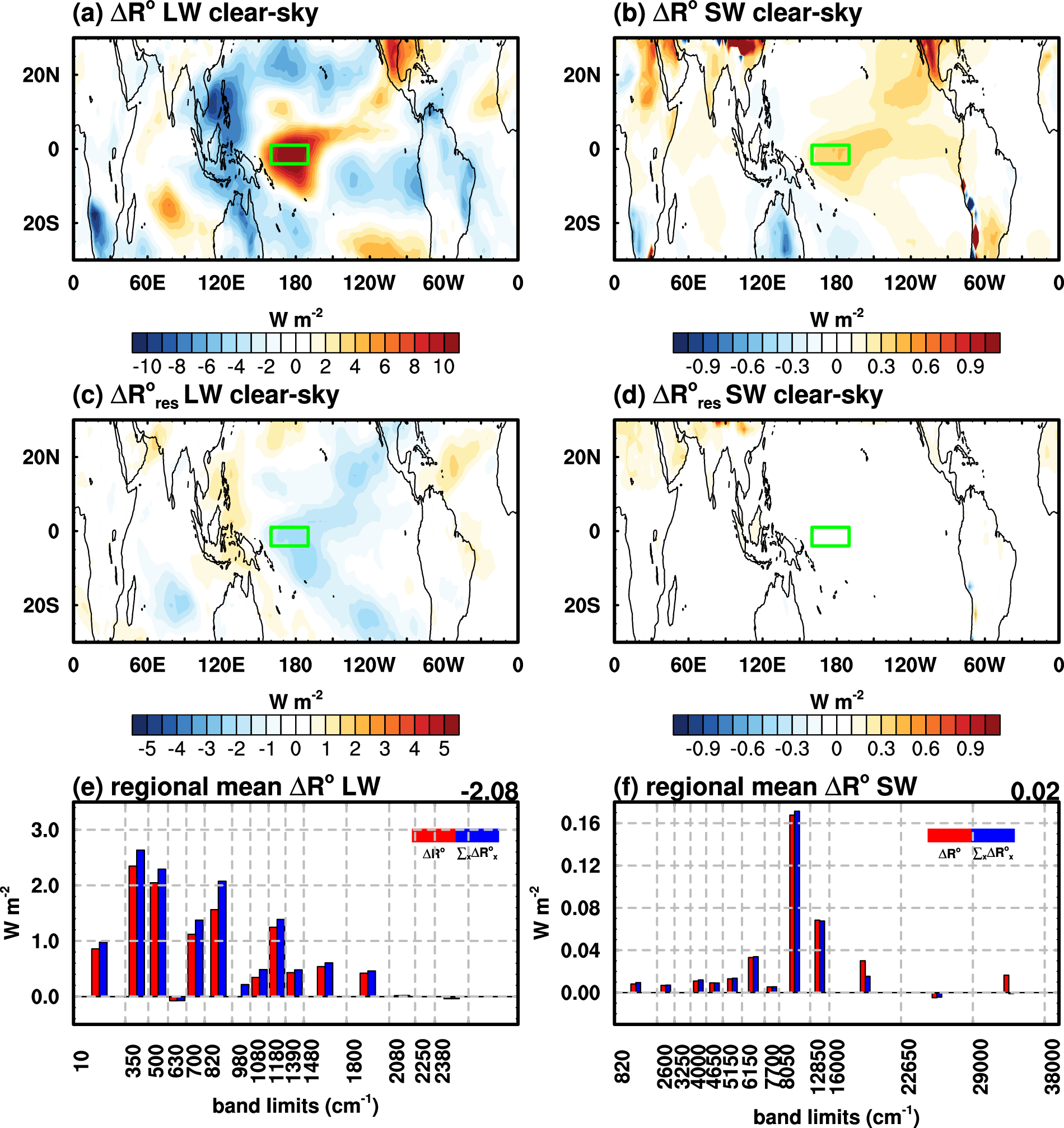

Clear-sky (a,b) broadband radiation change simulated by RRTMG for LW and SW, (c,d) residual terms quantified by ERA5 spectral kernels for LW and SW, (e,f) regional mean (as marked by the green rectangle) spectral radiation change in each band diagnosed by ERA5 spectral radiative kernels during ENSO. The numbers on the right corner in (e,f) are the regional mean residual terms.
