Fig. 6

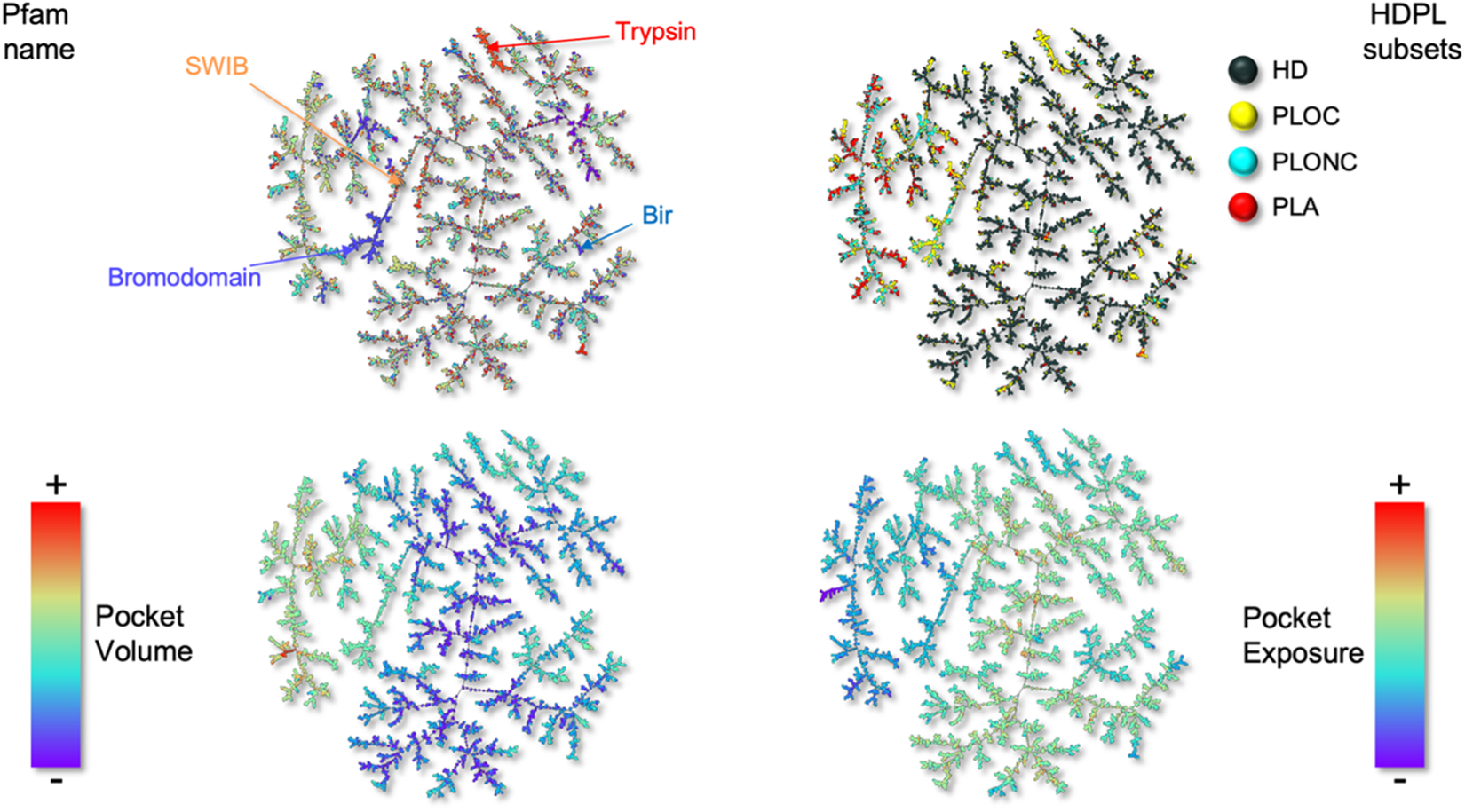

Pocketome represented as a minimum spanning tree. Each pocket is represented as a node in the tree and the proximity of pockets in the tree highlight their similarity. TMAP coloured by Pfam (top left panel), by HDPL subsets (top right), by pocket volume (bottom left), and finally by pocket exposure (bottom right).
