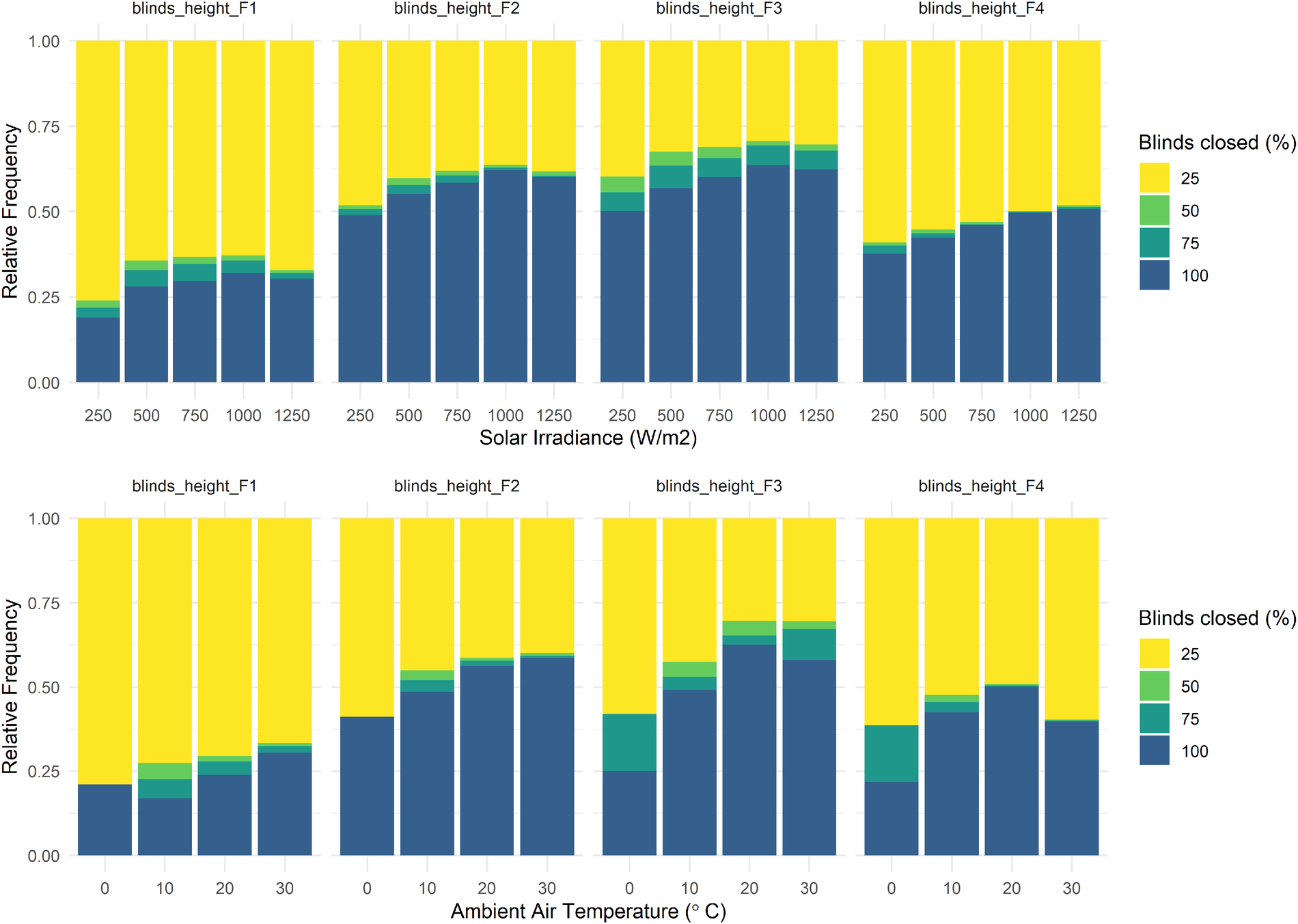

Fig. 7
From: Comprehensive energy demand and usage data for building automation
SolAce blinds operation. Blinds states per solar irradiation (first row of graphs) and ambient air temperature class (second row of graphs). Labels refer to the upper bounds of the temperature and irradiation bins, respectively. Light color indicates open blinds, while dark color represents closed blinds (upper bounds of blinds state bins are shown in the legend, e.g., 25 means 0–25% closed).
