Fig. 3

From: InsectSound1000 An insect sound dataset for deep learning based acoustic insect recognition

Fig. 3

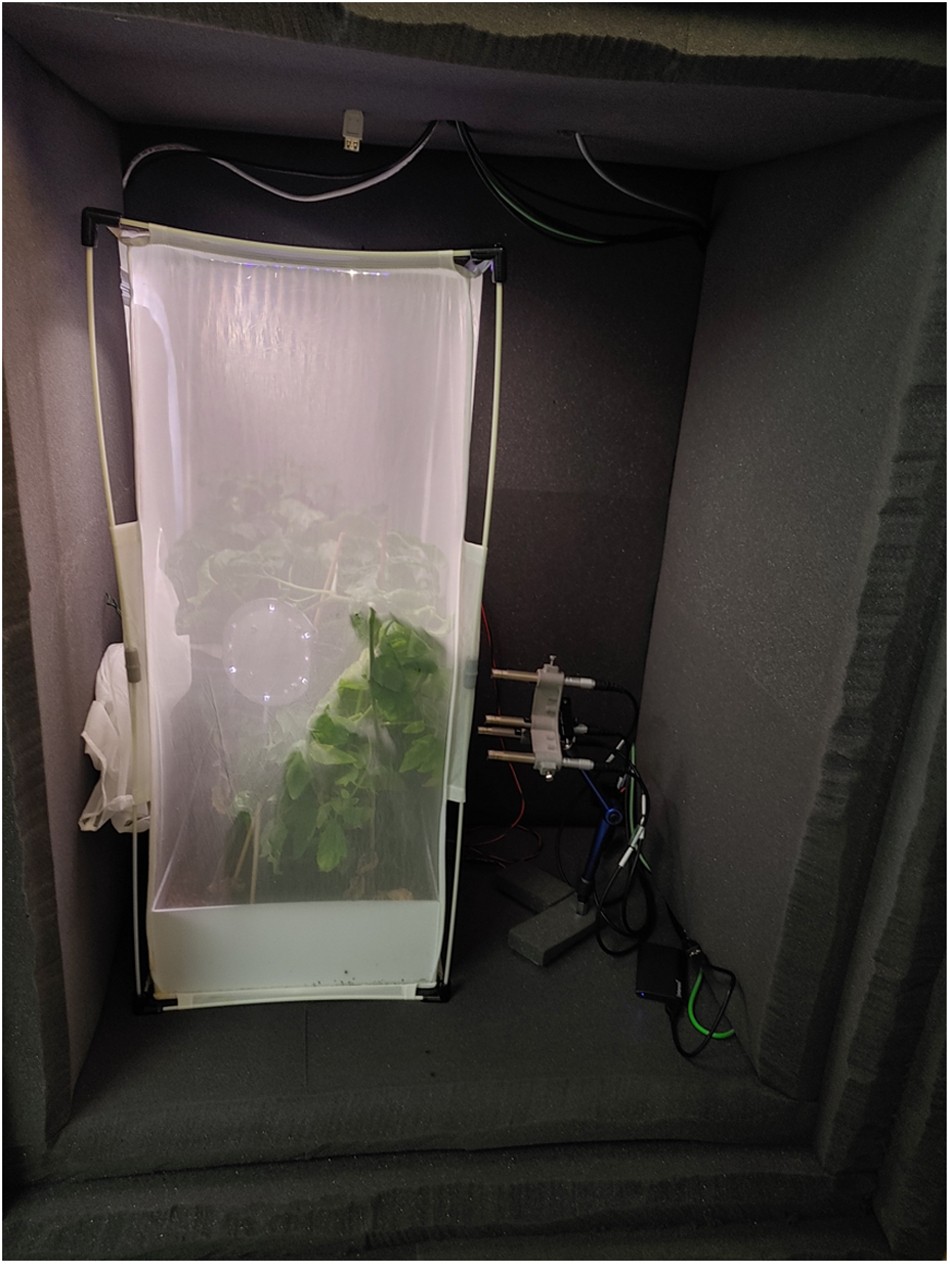

View of the recording setup for the InsectSound1000 dataset inside the anechoic box. An illuminated insect-rearing cage containing a square plant pot with two tomato plants, a low-budget microphone array and one selected species of insect was placed inside the box to the left.Next to it is the high-quality microphone array, which consists of 4 low-noise measurement microphones.
