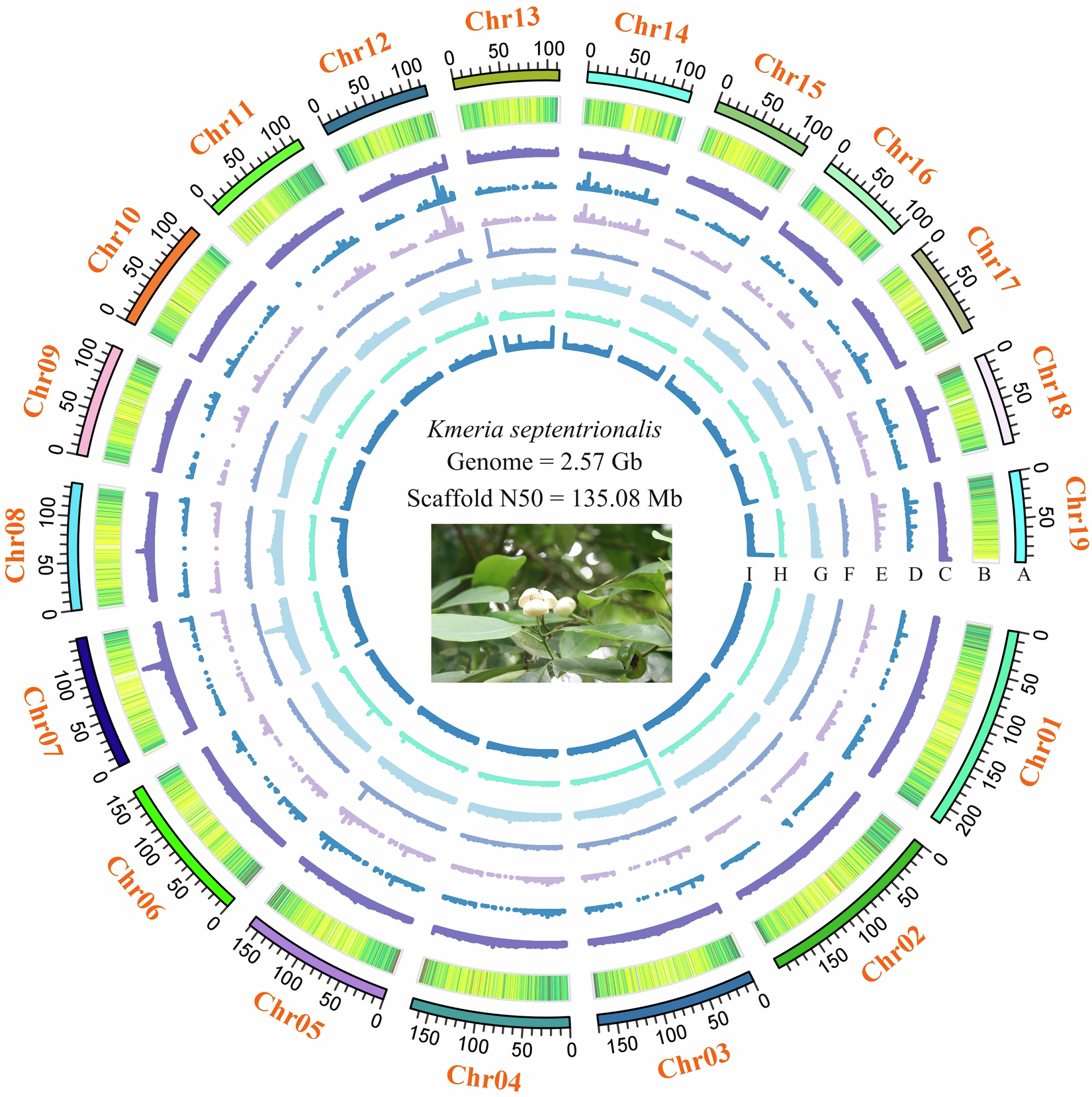

Fig. 2
From: A high-quality chromosome-level genome assembly of the endangered tree Kmeria septentrionalis
The genomic features of K. septentrionalis. (A) The 19 pseudochromosomes, with lengths proportional to their actual sizes; (B) gene density; (C–H) the density of total repeat sequences, LINEs, a combine of LINEs and SINEs, DNA transponsons, LTR and Unknown types; (I) histogram of GC content. The genome size is 2.57 Gb, with a scaffold N50 of 135.08 Mb, indicating high assembly quality. Inset: K. septentrionalis flowers in their natural habitat. (C–I) were drawn in 500 kb overlapping sliding windows.
